| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

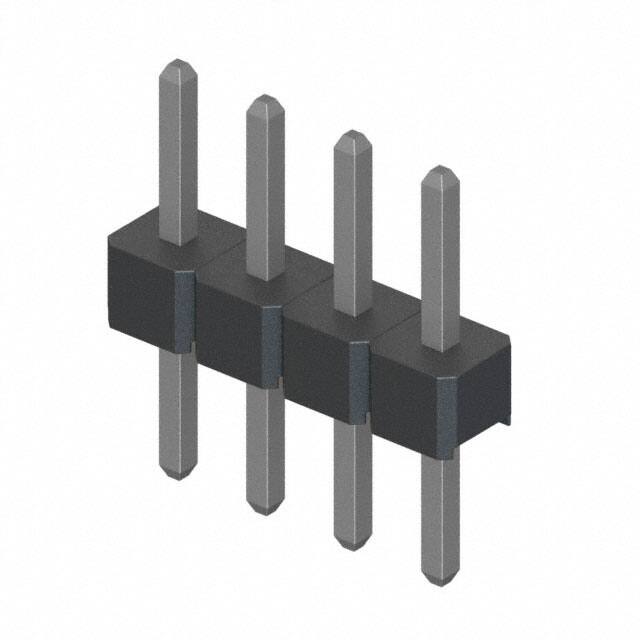

The Harwin M22-2010446 is a 4-position, 2.00mm pitch single row unshrouded male pin header from the M22 series. It features a cuttable design for flexible length adjustment and is intended for board-to-board interconnections. The header uses phosphor bronze contacts with a tin finish and is rated for 1A per contact. The housing is made of polyamide (PA6T) with a UL94 V-0 flammability rating, and the operating temperature range is -55°C to 105°C. Mounting is through hole with solder termination, and the overall contact length is 8.40mm with an insulation height of 1.50mm. This unshrouded header is suitable for general purpose signal routing and prototyping applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.26 | $0.26 |
| 10+ | $0.22 | $0.22 |
| 100+ | $0.19 | $0.19 |
| 250+ | $0.17 | $0.17 |
| 1,000+ | $0.16 | $0.16 |
| 3,000+ | $0.16 | $0.16 |
| 5,000+ | $0.14 | $0.14 |
| 10,000+ | $0.13 | $0.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
2.00mm.
1A per contact.
Through hole.
-55°C to 105°C.
Polyamide (PA6T) with UL94 V-0 rating.
Unshrouded.
