| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
63 pcs
|
63 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

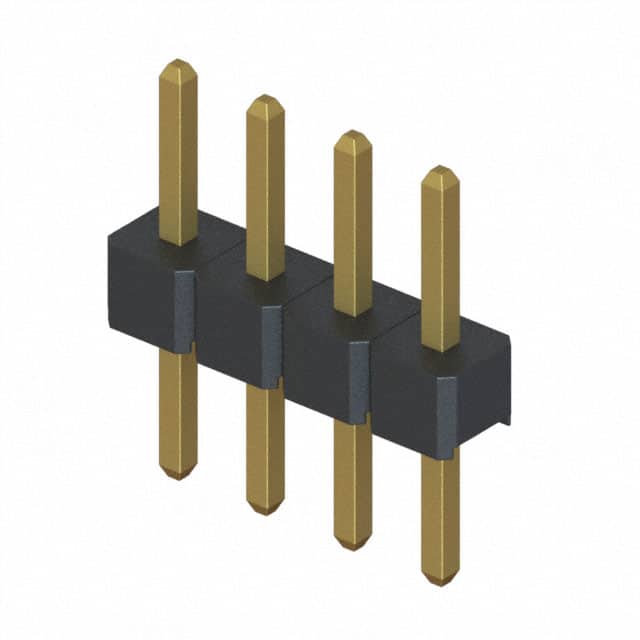

The Harwin M22-2010405 is a 4 position single row unshrouded male pin header from the M22 series. It features a 2.00mm (0.079") pitch and is designed for board-to-board interconnections. The connector has a through hole mounting type with solder termination and a push-pull fastening type. The square male pins are made of phosphor bronze with a gold finish. The insulation is black polyamide (PA6T, Nylon 6T) with a UL94 V-0 flammability rating. The operating temperature range is -55°C to 105°C. Electrical ratings include a current rating of 1A per contact, contact resistance of 20 mΩ max, dielectric withstanding voltage of 500 V AC/DC for 1 minute, and insulation resistance of 1,000 MΩ min. The connector is packaged loose in bags.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.29 | $0.29 |
| 10+ | $0.25 | $0.25 |
| 100+ | $0.21 | $0.21 |
| 250+ | $0.19 | $0.19 |
| 1,000+ | $0.18 | $0.18 |
| 3,000+ | $0.18 | $0.18 |
| 5,000+ | $0.17 | $0.17 |
| 10,000+ | $0.15 | $0.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.00mm (0.079").
It has 4 positions in a single row.
The current rating is 1A per contact.
Through hole solder termination.
-55°C to 105°C.
Phosphor bronze contact material with gold finish.
