M22-1920005 2 position 2mm pitch open shunt jumper socket from Harwin's M22 series. Features gold plated contacts, rated for 2A and 250V, with open top for probing.
Mfr Part #:

M22-1920005

Available from 2 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
2 position 2mm pitch open shunt jumper socket from Harwin's M22 series. Features gold plated contacts, rated for 2A and 250V, with open top for probing.
✓ Total Stock: 9,729 pcs
$ Price Range: $0.14 - $0.32

M22-1920005 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
9,000 pcs
On Request
9000 pcs On Request 1 On Request On Request On Request On Request On Request
HMB Electronics LLC ✓
Non-Authorised Inventory information
729 pcs
On Request
729 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M22-1920005 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Finish
Contact Finish Thickness
Current Rating (Amps)
Gender
Height
Housing Material
Lead Spacing
Material Flammability Rating
Number of Positions or Pins (Grid)
Pitch
Type
Voltage Rating
View Similar Products (0)

M22-1920005 Description

Short technical summary and product information.

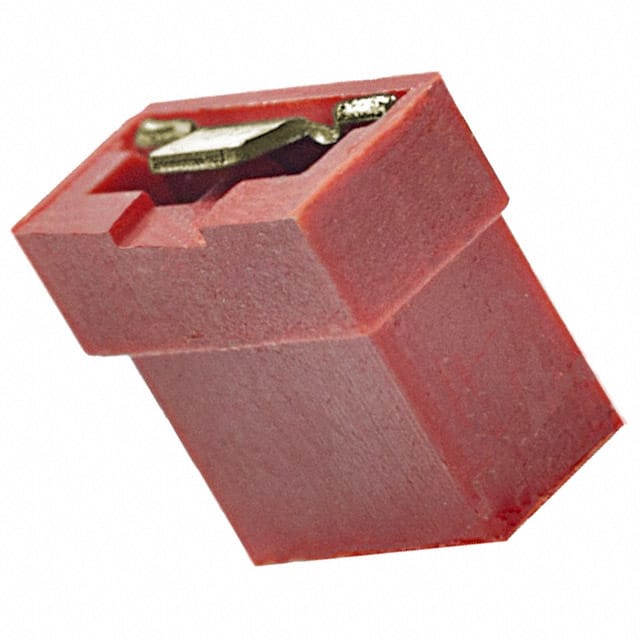

The Harwin M22-1920005 is a 2 position, 2.00mm pitch open shunt jumper socket from the M22 series. It features a red housing and gold plated phosphor bronze contacts for high reliability and low contact resistance. The open top design allows access to the contacts for probing, making it suitable for programming and configuration applications as an alternative to DIP switches. Electrical ratings include a maximum current of 2A at 25°C ambient and a working voltage of 250V DC or AC peak. The component is rated for up to 300 mating cycles and can be mounted side by side on 2mm pitch centers. It is designed to interconnect two adjacent 0.50mm square or round section pins.

M22-1920005 Quick Information

Product Type: Jumper Socket
Series: M22
Canonical Name: Harwin M22-1920005 2 Position 2mm Pitch Open Shunt Jumper Socket
Subcategory: Open Shunt

M22-1920005 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M22-1920005 Estimated Pricing

Qty Low High
1+ $0.32 $0.32
10+ $0.28 $0.28
25+ $0.24 $0.24
100+ $0.24 $0.24
250+ $0.20 $0.20
1,000+ $0.19 $0.19
3,000+ $0.19 $0.19
5,000+ $0.15 $0.15
10,000+ $0.14 $0.14

Estimated market price range - modelled values for guidance only, not live distributor offers.

M22-1920005 Features

  • 2 position 2mm pitch open shunt design.
  • Gold plated contacts for high reliability.
  • Rated for 2A current and 250V voltage.
  • Open top allows contact probing.
  • Up to 300 mating cycles.

M22-1920005 Applications

  • Alternative to DIP switches for configuration.
  • Used in PCB programming and setup.
  • Ideal for high-reliability interconnects.

M22-1920005 FAQs

4 frequently asked questions generated from this part’s specifications.
How many positions does the M22-1920005 have?

2 positions.

What is the pitch of the M22-1920005?

2.00mm (0.079 inches).

What is the current rating of the M22-1920005?

2A maximum at 25°C ambient.

What is the voltage rating of the M22-1920005?

250V DC nominal or AC peak.
