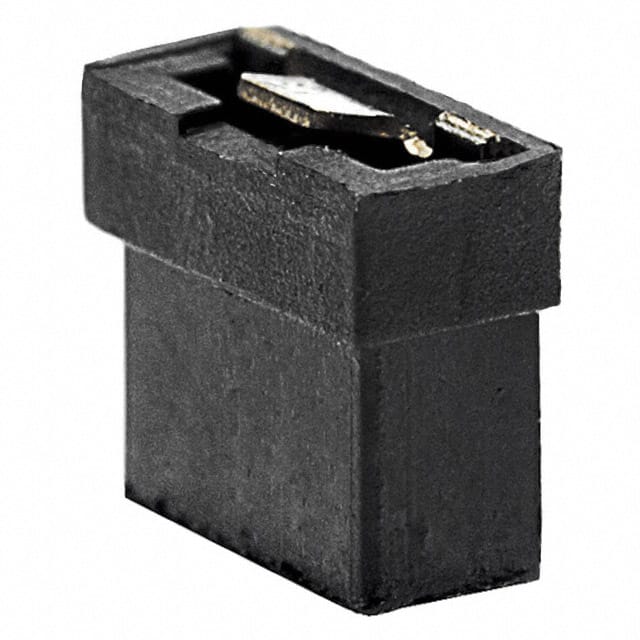

The Harwin M22-1900005 is a 2.00mm pitch jumper socket (shunt) designed for interconnecting two adjacent pins on 2mm centers. It features an open top design that allows access to the contact for probing, making it an alternative to DIP switches for programming or configuration tasks.
The socket is rated for a maximum current of 2A at 25°C ambient and a working voltage of 250V DC nominal or AC peak. It offers gold-plated contacts for reliable connections over 300 mating operations, with a contact resistance of 15mΩ initial and 20mΩ after conditioning. The housing is molded from black glass-filled polyester with a UL94 V-0 flammability rating.
Designed for environmental robustness, it operates from -40°C to +85°C and withstands high humidity and temperature extremes. The component is RoHS3 and REACH compliant (unverified per source data). Its compact size and open top make it suitable for probing, testing, and alternate programming methods in a variety of electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.35 | $0.35 |
| 10+ | $0.29 | $0.29 |
| 25+ | $0.26 | $0.26 |
| 100+ | $0.25 | $0.25 |
| 250+ | $0.22 | $0.22 |
| 1,000+ | $0.21 | $0.21 |
| 3,000+ | $0.19 | $0.19 |
| 5,000+ | $0.19 | $0.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M22-1900005 has 2 positions (1 x 2).
The pitch is 2.00mm (0.079 inches).
The maximum current rating is 2A at 25°C ambient.
The working voltage is 250V DC nominal or AC peak at sea level.
The operating temperature range is -40°C to +85°C.
It is rated for 300 mating operations with gold contacts.
The part is claimed to be RoHS3 compliant, but this is unverified from the source data.
