| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Bushing Thread | |
| Circuit | |
| Current Rating (Amps) | |
| Features | |
| Illumination | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

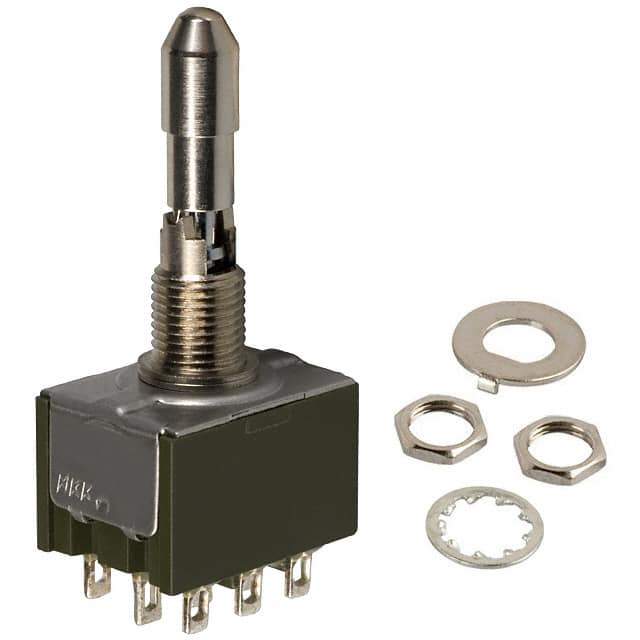

The NKK Switches M2032LL1W01 is a 3PDT (Triple Pole, Double Throw) toggle switch suitable for various applications requiring reliable switching. It is designed for panel mounting with a 1/4-40 bushing thread and a panel cutout diameter of 6.50mm.
This switch operates at 125V AC and 30V DC, with a current rating of 6A for AC and 4A for DC. It features a locking lever actuator and solder lug termination for secure connections. The operating temperature range is from -30°C to 85°C, making it suitable for a variety of environmental conditions. The switch function is On-On, and it is non-illuminated.
Key specifications include a 3PDT circuit configuration, a 16.50mm actuator length, and features such as epoxy sealed terminals. The panel mount design ensures easy integration into control panels and equipment housings.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M2032LL1W01 features a 3PDT (Triple Pole, Double Throw) circuit configuration.
This toggle switch has a current rating of 6A (AC) and 4A (DC), and a voltage rating of 125V (AC) and 30V (DC).
The M2032LL1W01 is designed for panel mounting.
The operating temperature range for the M2032LL1W01 is -30°C to 85°C.
The M2032LL1W01 features a locking lever actuator.
