Mfr Part #:

M2024BB1UW01

Name: M2024BB1UW01
Brand: NKK Switches
SKU: M2024BB1UW01

Mfr Name: NKK Switches

Description:

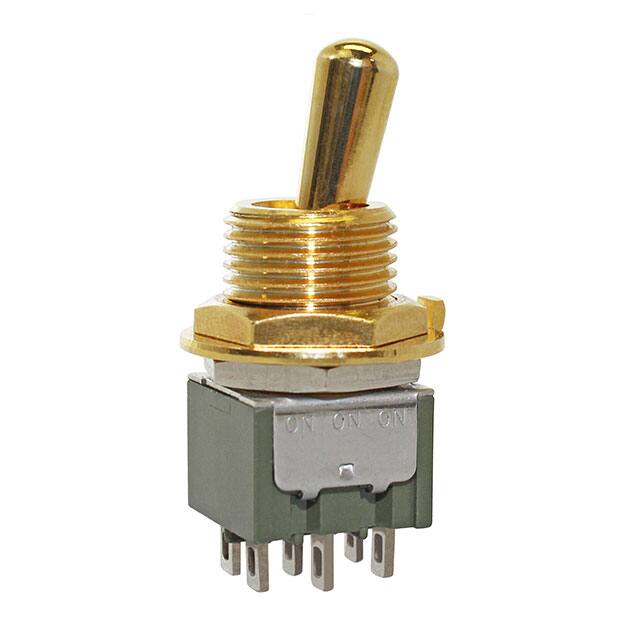

.453" 11.5MM LRG BAT TOGGLE GOLD

Stock on Request

M2024BB1UW01 Description

Short technical summary and product information.

.453" 11.5MM LRG BAT TOGGLE GOLD

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Toggle Switches
Manufacturer Name	NKK Switches
Actuator Length	11.50mm
Actuator Type	Standard Round
Bushing Thread	M12 x 1
Circuit	SP3T
Current Rating (Amps)	6A (AC), 3A (DC)
Features	Gold Actuator, Jumper needed to achieve triple throw
Illumination	Non-Illuminated
Mounting Type	Panel Mount
Operating Temperature	-30°C ~ 85°C
Panel Cutout Dimensions	Circular - 12.50mm Dia
Switch Function	On-On-On
Termination Style	Solder Lug
Voltage Rating	30 V
