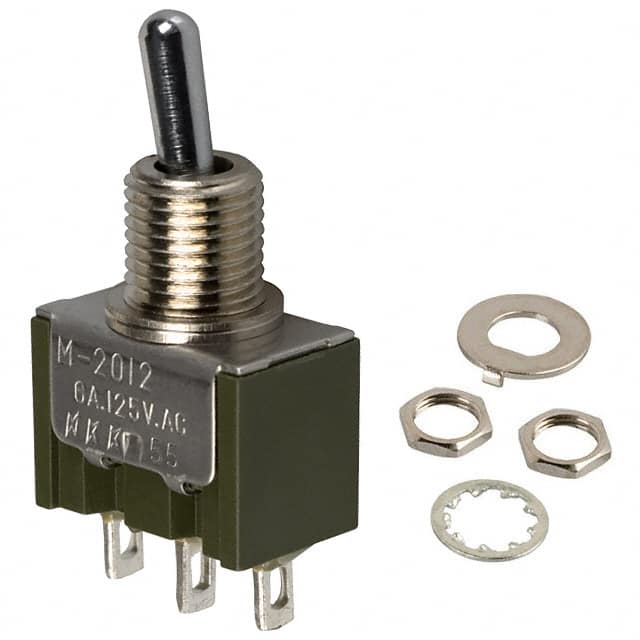

M2012S2A1W01 The NKK Switches M2012S2A1W01 is a non-illuminated, single-pole double-throw (SPDT) toggle switch. It features a panel mount design with solder lug termination.
Mfr Part #:

M2012S2A1W01

Available from 1 distributors
Mfr Name: NKK Switches
NKK Switches
The NKK Switches M2012S2A1W01 is a non-illuminated, single-pole double-throw (SPDT) toggle switch. It features a panel mount design with solder lug termination.
✓ Total Stock: 70 pcs
$ Price Range: $0.75

M2012S2A1W01 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
70 pcs
On Request
70 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M2012S2A1W01 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length
Actuator Type
Bushing Thread
Circuit
Current Rating (Amps)
Features
Illumination
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Storage Temperature
Switch Function
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

M2012S2A1W01 Description

Short technical summary and product information.

This NKK Switches M2012S2A1W01 is a non-illuminated toggle switch with a Single Pole Double Throw (SPDT) circuit configuration. It is rated for 6A AC and 4A DC at 30V.



The switch features a standard round actuator and solder lug termination style, designed for panel mounting with a 1/4-40 bushing thread. The operating temperature range is -30°C to 85°C.



Key features include epoxy sealed terminals for enhanced durability. The panel cutout required is circular with a 6.50mm diameter. This component is suitable for applications requiring reliable on-on switching functionality.

M2012S2A1W01 Quick Information

Product Type: Toggle Switch
Canonical Name: NKK Switches M2012S2A1W01 SPDT Toggle Switch
Subcategory: Toggle Switch

M2012S2A1W01 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M2012S2A1W01 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

M2012S2A1W01 Features

  • SPDT circuit configuration for versatile switching.
  • Rated for 6A AC and 4A DC at 30V.
  • Panel mount design with solder lug termination.
  • Operates in -30°C to 85°C temperature range.
  • Features epoxy sealed terminals for protection.

M2012S2A1W01 Applications

  • Ideal for control panel applications.
  • Suitable for general purpose switching.
  • Used in equipment requiring on-on function.
  • Reliable for industrial control systems.

M2012S2A1W01 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the circuit configuration of the switch?

The switch has an SPDT (Single Pole Double Throw) circuit configuration.

What is the current rating of the switch?

The switch has a current rating of 6A for AC and 4A for DC.

What is the voltage rating of the switch?

The switch has a voltage rating of 30V.

What is the operating temperature range?

The operating temperature range is from -30°C to 85°C.

What mounting style does the switch use?

The switch uses a panel mount style with a circular cutout of 6.50mm diameter.

What type of actuator does the switch have?

The switch has a standard round actuator with a length of 6.86mm.
