| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Connector | |
| Applications | |
| Current | |
| Current Consumption | |
| Data Interface | |
| Frequency | |
| Modulation or Protocol | |
| Mounting Type | |
| Operating Temperature | |
| Sensitivity | |
| Supplier Device Package | |
| Supply Voltage | |
| Voltage |

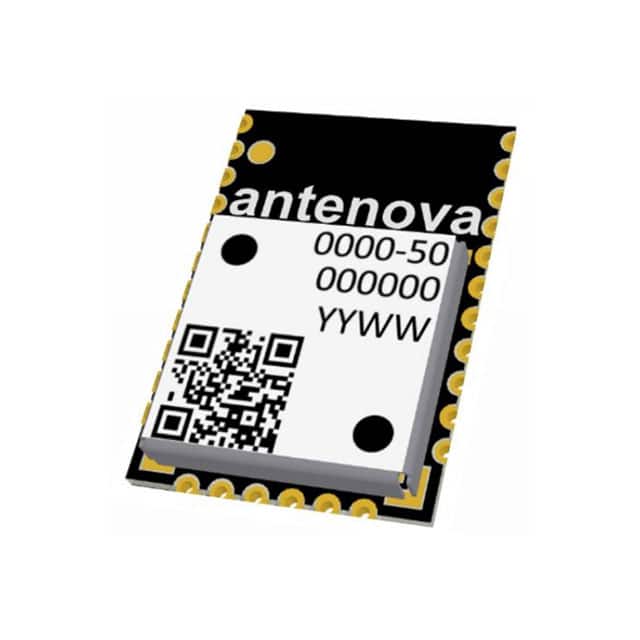

The Antenova M20050-1 is a compact GNSS receiver module designed for applications requiring precise location tracking. It integrates the MediaTek MT3333 flash chip and supports concurrent tracking of multiple constellations including GPS, GLONASS, Galileo, and BeiDou.
This module operates within a supply voltage range of 2.8V to 4.2V and consumes a typical current of 29mA. It features a sensitivity of -165dBm, enabling reliable signal acquisition. The module utilizes an UART interface for data communication and has an on-board or trace antenna connector.
Designed for ease of integration, the M20050-1 comes in a low profile SMD package measuring 13.8 x 9.5 x 1.8mm. Its operating temperature range is -40°C to 85°C, making it suitable for a variety of environmental conditions. Features like Active Interference Cancellation (AIC) and EASY (Self-Generated Orbit Prediction) enhance its performance and time to first fix (TTFF).
Applications for the M20050-1 include wearable devices, portable electronics, asset tracking, smartwatches, and navigation systems. Its robust design and multi-constellation support make it a versatile solution for location-aware products.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M20050-1 supports GPS, GLONASS, Galileo, and BeiDou constellations.
The operating voltage range is 2.8V to 4.2V.
The sensitivity is -165dBm.
The module dimensions are 13.8 x 9.5 x 1.8mm.
The operating temperature range is -40°C to 85°C.
It uses a UART interface.
