| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,966 pcs
|
3966 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Applications | |
| Frequency (Center | |
| Frequency Group | |
| Frequency Range | |
| Gain | |
| Height | |
| Height (Max) | |
| Impedance | |
| Length | |
| Mounting Type | |
| Number of Bands | |
| Operating Temperature | |
| RF Family | |
| Return Loss | |
| Termination | |
| Termination Style | |
| VSWR | |
| Width |

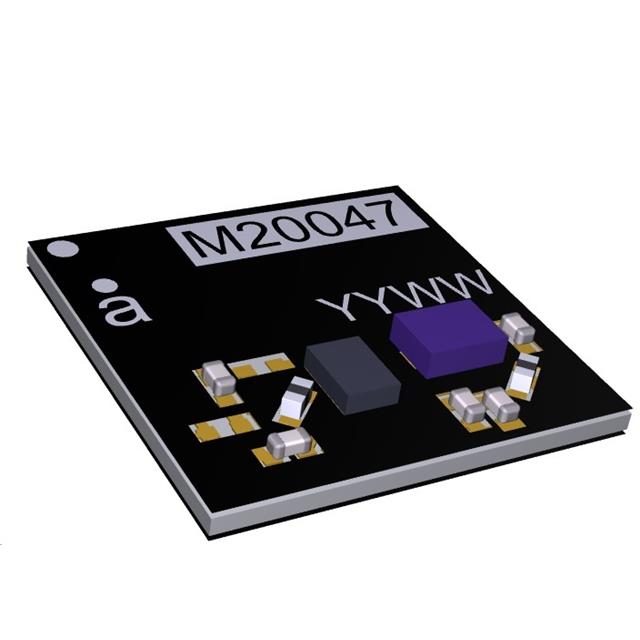

The Antenova M20047-1 is a general-purpose RF antenna designed for navigation applications. It operates within a frequency range of 1.559GHz to 1.609GHz, with a center frequency of 1.584GHz.
This integrated, trace antenna offers a gain of 3dBi and a VSWR of 1.4. It has a return loss of -12dB and an impedance of 50 Ohms. The antenna is designed for surface mounting and features a solder termination.
Key specifications include a maximum height of 0.043" (1.10mm), a width of 7mm, and a length of 7mm. The operating temperature range is from -40°C to +85°C. The antenna is part of the RADIONOVA® series.
This component is suitable for applications requiring reliable RF connectivity within the specified frequency band, such as wearables, portable devices, asset tracking, and smart watches.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The frequency range is 1.559GHz to 1.609GHz.
The antenna provides a gain of 3dBi.
The antenna uses Solder termination.
The mounting type is Surface Mount.
The operating temperature range is -40°C to +85°C.
The VSWR is 1.4.
The impedance is 50 Ohms.
