| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

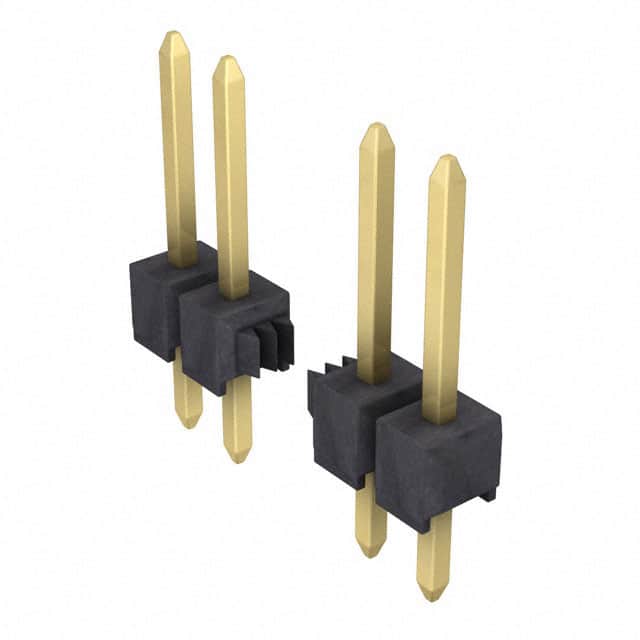

The Harwin M20-9990845 is a 2.54mm pitch male pin header from the M20 series. It is a single row, 8-position, unshrouded connector with straight (vertical) through-hole termination. The pins are square, 0.64mm (0.025"), with a contact length of 6.10mm and overall length of 11.68mm. The insulator is black polyamide (PA6T/Nylon 6T) with UL94 V-0 flammability rating, suitable for operating temperatures from -40°C to 105°C.
This header is designed for board-to-board or cable interconnections. It can be cut to fewer positions using the M20 Hand Cutting Tool Z1022-00. The contacts are brass with gold finish, rated at 3A per contact maximum. Electrical specifications include a dielectric withstanding voltage of 500V AC for 1 minute, minimum insulation resistance of 500MΩ, and maximum contact resistance of 20mΩ initial. It meets RoHS and REACH requirements (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.37 | $0.37 |
| 10+ | $0.32 | $0.32 |
| 25+ | $0.31 | $0.31 |
| 100+ | $0.27 | $0.27 |
| 250+ | $0.24 | $0.24 |
| 1,000+ | $0.23 | $0.23 |
| 3,000+ | $0.22 | $0.22 |
| 5,000+ | $0.20 | $0.20 |
| 10,000+ | $0.19 | $0.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 8 positions in a single row, all loaded.
The pitch is 2.54mm (0.100 inches).
The maximum current rating is 3A per contact.
It is a through-hole (THT) mounting connector with solder termination.
The contacts have a gold finish.
The operating temperature range is -40°C to 105°C.
The insulator material has a UL94 V-0 flammability rating.
