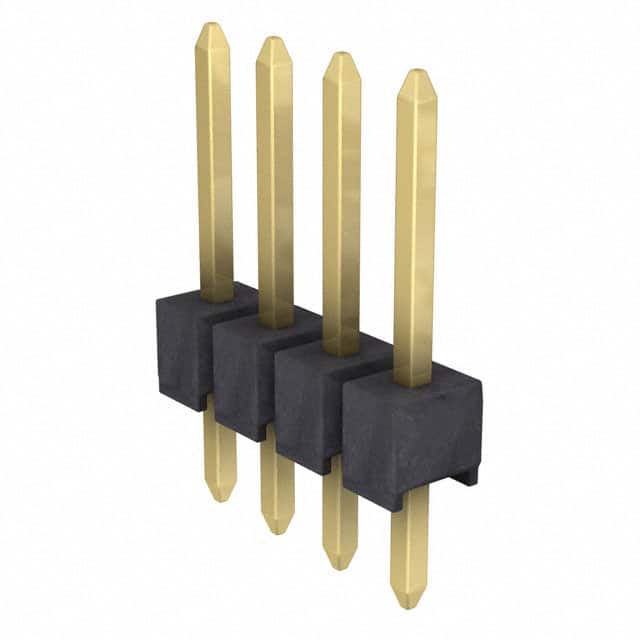

The Harwin M20-9990445 is a 4-position male pin header from the M20 series, featuring a 2.54mm (0.100 inch) pitch. It is designed for board-to-board or cable interconnections and offers a through hole solder termination. The unshrouded header has square pins with gold finish, ensuring reliable contact performance. The insulation is black polyamide (PA6T/Nylon 6T) with a UL94 V-0 flammability rating, suitable for applications requiring flame retardancy. The operating temperature range is -40°C to 105°C, and the contact material is copper alloy (per datasheet). Electrical specifications include a current rating of 3A per contact, initial contact resistance of 20 mΩ maximum, dielectric withstanding voltage of 500V AC, and insulation resistance of 500 MΩ minimum. The header can be cut to a smaller number of positions using the M20 Hand Cutting Tool Z1022-00. Overall contact length is 0.460 inches (11.68mm), with a mating pin height of 6.1mm. This connector is suitable for general purpose prototyping, industrial control, and PCB stacking applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
| 10+ | $0.17 | $0.17 |
| 100+ | $0.15 | $0.15 |
| 250+ | $0.13 | $0.13 |
| 1,000+ | $0.12 | $0.12 |
| 3,000+ | $0.12 | $0.12 |
| 5,000+ | $0.11 | $0.11 |
| 10,000+ | $0.11 | $0.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.54mm (0.100 inches).
4 positions.
3A per contact.
Through hole, with solder termination.
-40°C to 105°C.
Initial contact resistance is 20 mΩ maximum; after conditioning it is 30 mΩ maximum.
Minimum 500 MΩ.
