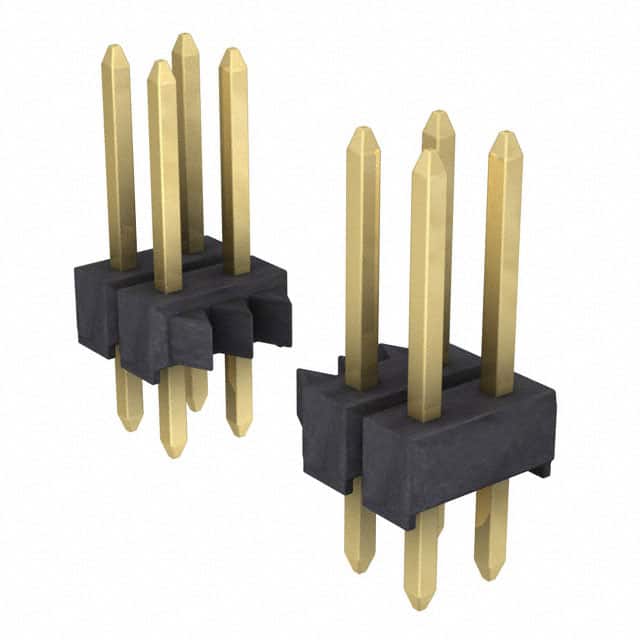

The Harwin M20-9982345 is a 46-position, 2.54mm pitch, through hole pin header from the M20 series. It features two rows of male pins with a square contact shape, gold-plated brass contacts, and a black polyamide (PA6T) insulation housing. The header is unshrouded with push-pull fastening, all positions loaded, and solder termination for through hole mounting.
Electrical ratings include 3A per contact maximum current, initial contact resistance of 20mΩ maximum (30mΩ after conditioning), 500MΩ minimum insulation resistance, and 500V AC dielectric withstanding voltage for 1 minute. The operating temperature range spans -40°C to 105°C, and the insulation material is rated UL94 V-0 for flammability.
This connector is designed for board-to-board or cable interconnection applications. Its unshrouded header style and 2.54mm row spacing make it suitable for general purpose prototyping, industrial controls, and other systems requiring reliable, separable connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.81 | $1.81 |
| 10+ | $1.55 | $1.55 |
| 100+ | $1.30 | $1.30 |
| 500+ | $1.16 | $1.16 |
| 1,000+ | $1.11 | $1.11 |
| 5,000+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
46 positions.
2.54mm (0.100 inches).
3A per contact.
Through hole.
-40°C to 105°C.
Gold.
UL94 V-0.
