| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

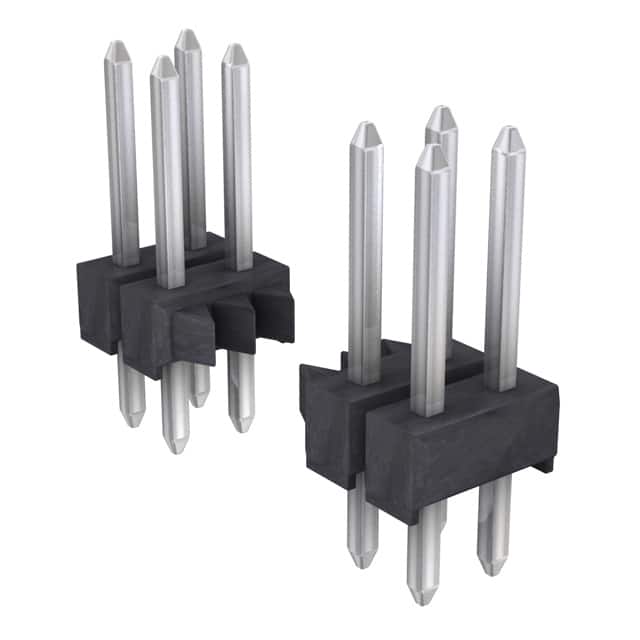

The Harwin M20-9980846 is a 16 position (8+8) dual row 2.54mm pitch unshrouded male pin header from the M20 series. It features a through hole mounting style with solder termination and square brass pins with a tin finish. The header has a mating pin height of 6.1mm and an overall contact length of 11.68mm.
This connector is rated for 3A per contact with a maximum initial contact resistance of 20mΩ. The insulation is made of black polyamide (PA6T/Nylon 6T) with a UL94 V-0 flammability rating. It operates over a temperature range of -40°C to 105°C.
The unshrouded design allows for board-to-board or cable connections. The header can be cut to a smaller number of positions using the M20 Hand Cutting Tool Z1022-00.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.63 | $0.63 |
| 10+ | $0.54 | $0.54 |
| 100+ | $0.46 | $0.46 |
| 250+ | $0.41 | $0.41 |
| 1,000+ | $0.39 | $0.39 |
| 5,000+ | $0.35 | $0.35 |
| 10,000+ | $0.33 | $0.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M20-9980846 has 16 positions (8+8) in a dual row configuration.
The pitch is 2.54mm (0.100") with a row spacing of 2.54mm (0.100").
The current rating is 3A per contact maximum.
The mounting type is through hole with solder termination.
The operating temperature range is -40°C to 105°C.
The contact material is brass (copper alloy) with a tin finish.
The RoHS status is listed as compliant (RoHS3), but this is unverified.
