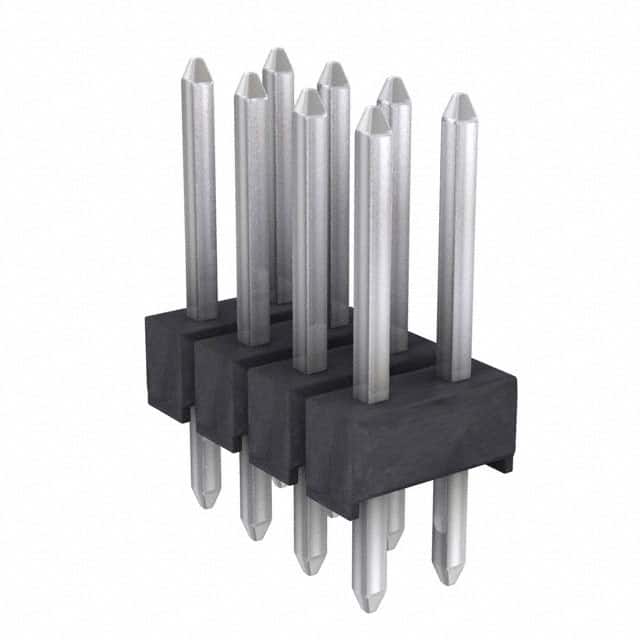

The Harwin M20-9980446 is a 2.54mm pitch, double row, straight male pin header from the M20 series. It features 8 positions (4+4) with square pins, a 6.10mm mating pin length, and an overall contact length of 11.68mm. The connector is unshrouded with a push-pull fastening type and is designed for through hole solder termination.
This header is suitable for board-to-board or board-to-cable interconnections. The insulation is made of black polyamide (PA6T, Nylon 6T) with a UL94 V-0 flammability rating. Contacts are brass with a tin finish. The operating temperature range is -40°C to 105°C.
Electrical ratings include a maximum current of 3A per contact, initial contact resistance of 20mΩ max, dielectric withstanding voltage of 500V AC for 1 minute, and minimum insulation resistance of 500MΩ. The connector can be cut to a smaller number of contacts using the M20 Hand Cutting Tool Z1022-00.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.27 | $0.27 |
| 10+ | $0.23 | $0.23 |
| 25+ | $0.23 | $0.23 |
| 100+ | $0.21 | $0.21 |
| 250+ | $0.21 | $0.21 |
| 1,000+ | $0.21 | $0.21 |
| 5,000+ | $0.17 | $0.17 |
| 10,000+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 8 positions (4+4) in 2 rows.
The maximum current rating is 3A per contact.
It is a through hole mounting connector with solder termination.
The operating temperature range is -40°C to 105°C.
