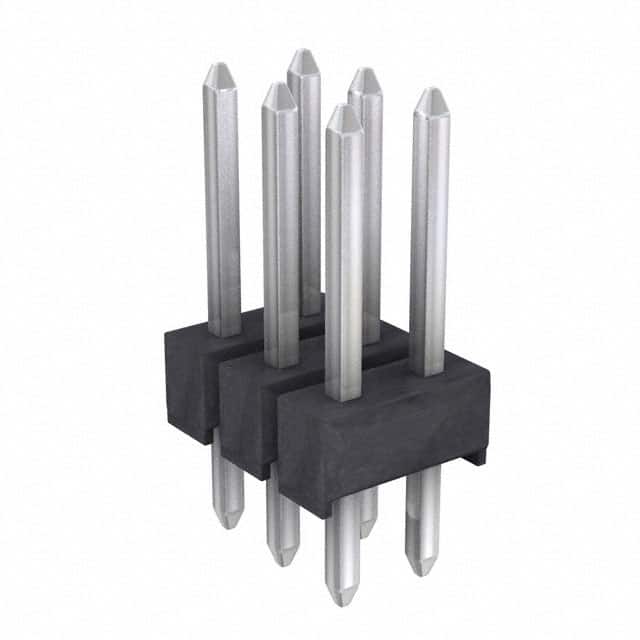

The M20-9980346 is a 6-position (2x3) unshrouded male pin header from Harwin's M20 series of 2.54mm pitch connectors. It is designed for through hole solder mounting and features a vertical orientation. The header has a 2.54mm pitch and row spacing, with square brass contacts that are tin-plated. The insulation material is black polyamide (PA6T) with a UL94 V-0 flammability rating. The mating pin height is 6.10mm, and the overall contact length is 11.68mm. This header is suitable for board-to-board or cable applications and can be cut to a smaller number of contacts using the M20 Hand Cutting Tool Z1022-00. Electrical ratings include a maximum current of 3A per contact, initial contact resistance of 20mΩ, dielectric withstanding voltage of 500V AC for 1 minute, and minimum insulation resistance of 500MΩ. The operating temperature range is -40°C to 105°C. This component is RoHS3 compliant, with MSL Level 1 and REACH unaffected status (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.24 | $0.24 |
| 10+ | $0.21 | $0.21 |
| 25+ | $0.20 | $0.20 |
| 100+ | $0.18 | $0.18 |
| 250+ | $0.16 | $0.16 |
| 1,000+ | $0.15 | $0.15 |
| 3,000+ | $0.15 | $0.15 |
| 5,000+ | $0.13 | $0.13 |
| 10,000+ | $0.13 | $0.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions arranged in 2 rows.
2.54mm (0.100") pitch.
3A maximum per contact.
500V AC for 1 minute.
Through hole solder.
-40°C to 105°C.
Tin.
