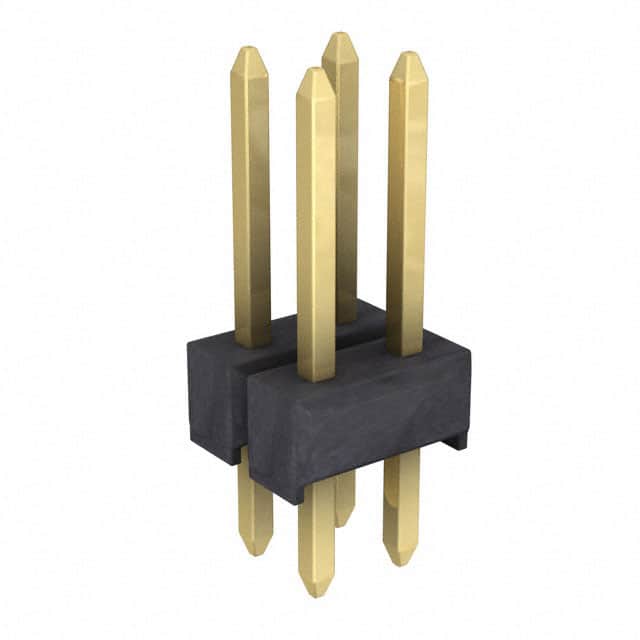

The Harwin M20-9980245 is a 4-position (2+2) double row male pin header from the M20 series, featuring a 2.54mm (0.100") pitch. This unshrouded header is designed for through-hole mounting with solder termination, making it suitable for board-to-board and cable-to-board applications. The contact pins are made of brass with a gold finish, rated for 3A per contact, and have a mating pin height of 6.10mm and overall contact length of 11.68mm. The insulator is black polyamide (PA6T) with a UL94 V-0 flammability rating. Electrical characteristics include a maximum initial contact resistance of 20mΩ, dielectric withstanding voltage of 500V AC for 1 minute, and minimum insulation resistance of 500MΩ. The header can be cut to a smaller number of contacts using the M20 Hand Cutting Tool Z1022-00. Operating temperature ranges from -40°C to 105°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.24 | $0.24 |
| 10+ | $0.20 | $0.20 |
| 100+ | $0.17 | $0.17 |
| 250+ | $0.15 | $0.15 |
| 1,000+ | $0.14 | $0.14 |
| 3,000+ | $0.14 | $0.14 |
| 5,000+ | $0.13 | $0.13 |
| 10,000+ | $0.13 | $0.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions arranged as 2+2 (double row).
2.54mm (0.100") pitch with 2.54mm row spacing.
3A maximum per contact.
Through hole mounting with solder termination.
-40°C to 105°C.
Gold plating on brass contacts.
No, it is unshrouded.
