Mfr Part #:

M20-9970345

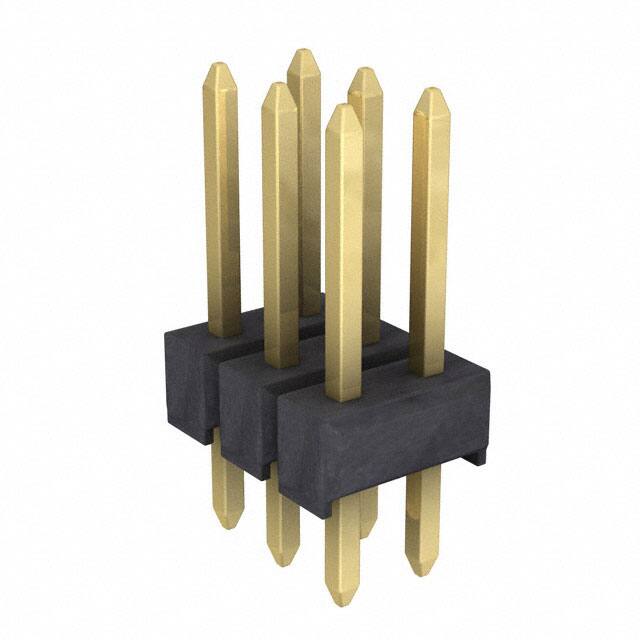

This is a 6 position, 2 row, 2.54mm pitch through hole header with gold plated male pins. It is unshrouded and designed for board-to-board or cable connections.

✓ Total Stock: 14,000 pcs

$ Price Range: $0.24 - $0.47

M20-9970345 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
AA2DE ✓ Non-Authorised Inventory information	14,000 pcs On Request	14000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

M20-9970345 Description

Short technical summary and product information.

The M20-9970345 is a 6-position, 2-row header from Harwin Inc. with a standard 2.54mm (0.100") pitch. It features male pins with gold contact finish for reliable connections and brass contact material. The insulation is black polyamide (PA6T, Nylon 6T) with a UL94 V-0 flammability rating.

This through-hole header has a solder termination and an unshrouded design with push-pull fastening. It is cuttable, allowing customization of the number of positions. The overall contact length is 8.51mm (0.335") with a total length of 14.00mm (0.551"). It is rated for 3A per contact and operates from -40°C to 105°C.

The connector is suitable for board-to-board and cable-to-board applications. It is commonly used in prototyping, industrial control, and general signal routing where standard 2.54mm pitch connectivity is required. Compliance with RoHS and REACH is claimed but unverified.

M20-9970345 Quick Information

Product Type: Header, Male Pins

Canonical Name: Harwin M20-9970345 6 Position 2.54mm Pitch Cuttable Header, Male Pins

Subcategory: Male Pins

M20-9970345 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

M20-9970345 Estimated Pricing

Qty	Low	High
1+	$0.47	$0.47
10+	$0.40	$0.40
25+	$0.40	$0.40
100+	$0.34	$0.34
250+	$0.30	$0.30
1,000+	$0.29	$0.29
3,000+	$0.27	$0.27
5,000+	$0.26	$0.26
10,000+	$0.24	$0.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

M20-9970345 Features

6 position, 2 row header.
2.54mm pitch for standard spacing.
Gold plated contacts for reliable connections.
Rated for 3A per contact.
UL94 V-0 flame retardant insulation.

M20-9970345 Applications

For board-to-board interconnection.
For cable-to-board connections.
In through-hole PCB designs.
For general purpose signal routing.
Used in prototyping and test fixtures.

M20-9970345 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the M20-9970345 have?

6 positions, all loaded.

What is the pitch of this header?

2.54mm (0.100")

What is the current rating?

3A per contact.

What is the mounting type?

Through hole, solder termination.

What is the operating temperature range?

-40°C to 105°C.

What is the contact material and finish?

Brass with gold plating.

What is the insulation material and flammability rating?

Polyamide (PA6T), Nylon 6T, rated UL94 V-0.

Category	Headers, Male Pins
Manufacturer Name	Harwin Inc.
Connector Type	Header, Cuttable
Contact Finish	Gold
Contact Length	8.51mm (0.335")
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3A per Contact
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.54mm (0.100")
Insulation Material	Polyamide (PA6T), Nylon 6T
Lead Spacing	2.54 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-40°C ~ 105°C
Overall Contact Length	0.551" (14.00mm)
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
SVHC Present	Not Present
Shrouding	Unshrouded
Style	Board to Board or Cable
Termination	Solder
