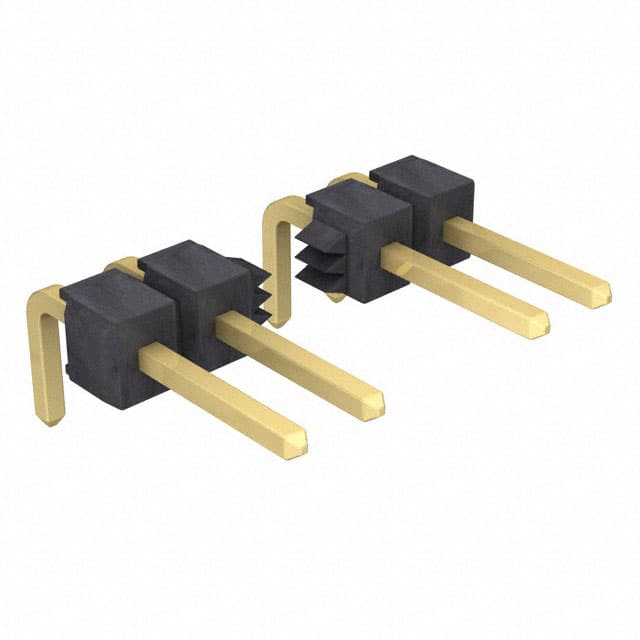

The M20-9961245 from Harwin Inc. is a 12-position single row male pin header from the M20 series. It features a 2.54mm (0.100") pitch and is designed for board-to-board or cable interconnections. The connector is unshrouded with a push-pull fastening type and uses square pins made of brass with gold finish.
This header is mounted through hole with a right angle orientation, making it suitable for applications requiring a horizontal connection. The insulation is made of black polyamide (PA6T) with a flammability rating of UL94 V-0. It is rated for 3A per contact and has an operating temperature range of -40°C to 105°C.
The contact length is 6.10mm, and the insulation height is 2.54mm. The part is RoHS3 compliant and has an MSL of 1 (unlimited). The M20-9961245 can be cut to a smaller number of positions using the M20 Hand Cutting Tool Z1022-00.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.68 | $0.68 |
| 10+ | $0.58 | $0.58 |
| 100+ | $0.57 | $0.57 |
| 300+ | $0.44 | $0.44 |
| 1,200+ | $0.41 | $0.41 |
| 2,700+ | $0.40 | $0.40 |
| 5,100+ | $0.37 | $0.37 |
| 10,200+ | $0.36 | $0.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions.
2.54mm (0.100").
3A per contact.
Through hole, right angle.
Gold.
-40°C to 105°C.
Yes, RoHS3 compliant.
