M20-9960245 The M20-9960245 is a 2-position single row right angle male pin header from Harwin with a 2.54mm pitch. It features gold contacts, through hole mounting, and is rated for 3A per contact.
Mfr Part #:

M20-9960245

Available from 2 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
The M20-9960245 is a 2-position single row right angle male pin header from Harwin with a 2.54mm pitch. It features gold contacts, through hole mounting, and is rated for 3A per contact.
✓ Total Stock: 11,010 pcs
$ Price Range: $0.07 - $0.13

M20-9960245 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
11,000 pcs
On Request
11000 pcs On Request 1 On Request On Request On Request On Request On Request
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M20-9960245 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Termination
View Similar Products (0)

M20-9960245 Description

Short technical summary and product information.

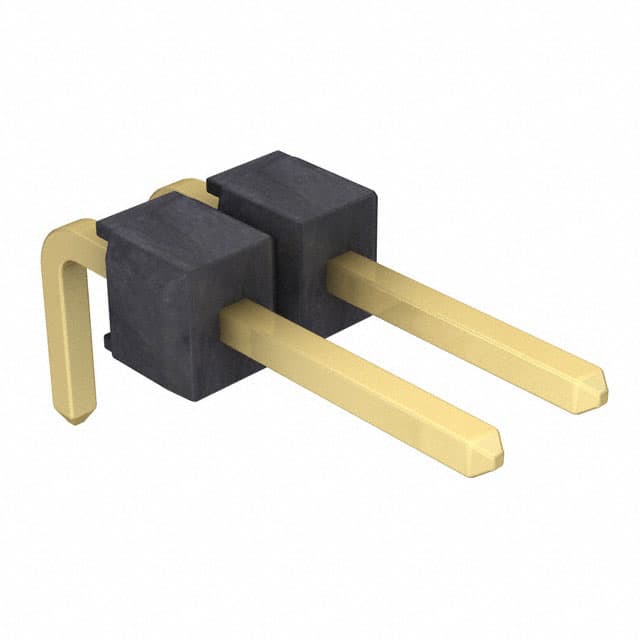

The M20-9960245 is a 2-position single row right angle male pin header from the Harwin M20 series. It features a 2.54mm (0.100") pitch and is designed for through hole solder termination. The connector is unshrouded with a push-pull fastening type, making it suitable for board-to-board and cable connections.



The contacts are made of brass with a gold finish, ensuring reliable electrical performance. The insulation is black polyamide (PA6T) with a UL94 V-0 flammability rating. The operating temperature range is -40°C to 105°C, and the current rating is 3A per contact.



The header can be cut to a smaller number of contacts using the M20 Hand Cutting Tool Z1022-00, providing flexibility in design. The right angle orientation allows for space-saving PCB layouts.

M20-9960245 Quick Information

Product Type: Header, Male Pins
Series: M20
Canonical Name: Harwin M20-9960245 2 Position Single Row Right Angle Male Pin Header, 2.54mm Pitch
Subcategory: Unshrouded Single Row Header

M20-9960245 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M20-9960245 Estimated Pricing

Qty Low High
1+ $0.13 $0.13
10+ $0.11 $0.11
100+ $0.10 $0.10
250+ $0.09 $0.09
1,000+ $0.08 $0.08
3,000+ $0.08 $0.08
5,000+ $0.07 $0.07
10,000+ $0.07 $0.07

Estimated market price range - modelled values for guidance only, not live distributor offers.

M20-9960245 Features

  • 2-position single row right angle header.
  • 2.54mm pitch for compact designs.
  • Gold plated contacts for reliability.
  • Through hole solder termination.
  • Rated for 3A per contact.

M20-9960245 Applications

  • Board-to-board and wire-to-board connections.
  • Ideal for prototyping and modular designs.
  • Used in industrial control systems.
  • Suitable for consumer electronics.

M20-9960245 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

The connector has 2 positions.

What is the pitch?

The pitch is 2.54mm (0.100").

What is the current rating?

The current rating is 3A per contact.

What is the mounting type?

The mounting type is through hole, right angle.

What is the contact finish?

The contact finish is gold.

What is the operating temperature range?

The operating temperature range is -40°C to 105°C.

What is the insulation material?

The insulation material is polyamide (PA6T), Nylon 6T.
