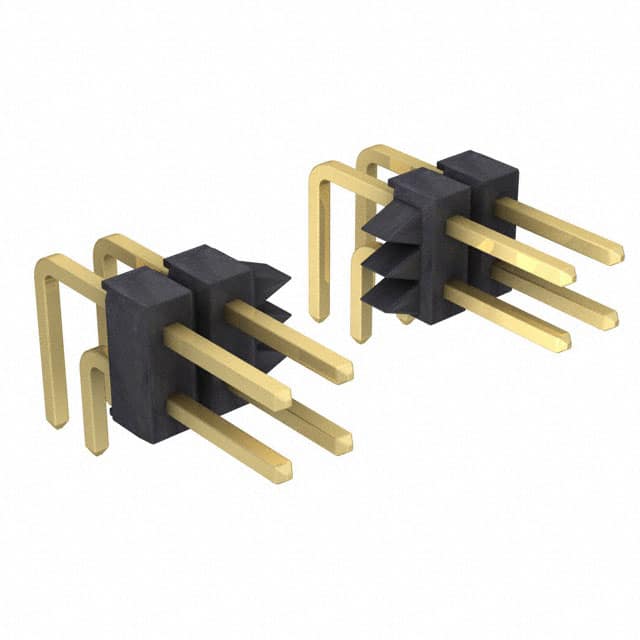

The Harwin M20-9952545 is a 50-position (2x25) male pin header from the M20 series, designed for through-hole, right-angle mounting on a 2.54mm pitch. This unshrouded connector features square brass pins with a gold finish and a 6.10mm mating pin length, suitable for board-to-board or cable interconnect applications.
The connector is rated for 3A per contact and has an operating temperature range of -40°C to 105°C. The insulator is made from black polyamide (Nylon 6T) with a UL94 V-0 flammability rating. The header is cuttable, allowing the user to reduce the number of positions to fit specific design requirements using the Harwin M20 Hand Cutting Tool Z1022-00.
This component is RoHS3 compliant and REACH unaffected. It is a push-pull, solder termination connector ideal for a variety of electronic assemblies requiring a reliable, high-density interconnect.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.69 | $2.69 |
| 10+ | $2.35 | $2.35 |
| 25+ | $2.24 | $2.24 |
| 100+ | $1.90 | $1.90 |
| 300+ | $1.89 | $1.89 |
| 500+ | $1.38 | $1.38 |
| 1,000+ | $1.36 | $1.36 |
| 2,500+ | $1.35 | $1.35 |
| 5,000+ | $1.32 | $1.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 50 positions arranged in 2 rows.
The current rating is 3A per contact.
It is a through-hole, right-angle mounting connector.
The operating temperature range is -40°C to 105°C.
The contacts are made of brass with a gold finish.
RoHS3 compliance is indicated but unverified.
