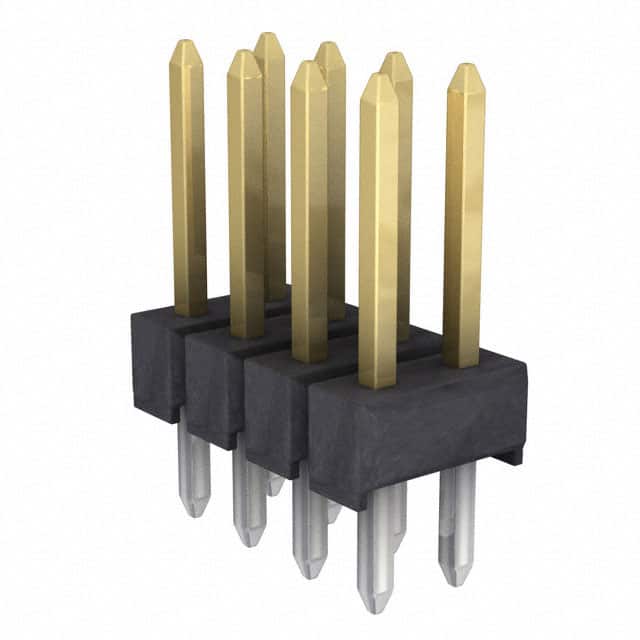

The Harwin M20-9760442 is an 8 position unshrouded pin header from the M20 series, designed for through hole mounting with solder termination. It features two rows of male square pins on a 2.54mm pitch with a row spacing of 2.54mm, making it suitable for board-to-board or cable interconnections.
The header is rated for 3A per contact and operates over a temperature range of -40°C to 105°C. The contact material is brass with a tin finish, and the insulator is black polyamide (PA6T/Nylon 6T) with a UL94 V-0 flammability rating. The mating contact length is 5.80mm with an overall contact length of 11.48mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.35 | $0.35 |
| 10+ | $0.30 | $0.30 |
| 100+ | $0.26 | $0.26 |
| 250+ | $0.23 | $0.23 |
| 1,000+ | $0.21 | $0.21 |
| 5,000+ | $0.19 | $0.19 |
| 10,000+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100") with a row spacing of 2.54mm.
It has 8 positions in 2 rows, all positions loaded.
The current rating is 3A per contact.
The operating temperature range is -40°C to 105°C.
It uses through hole mounting with solder termination.
