| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Termination |

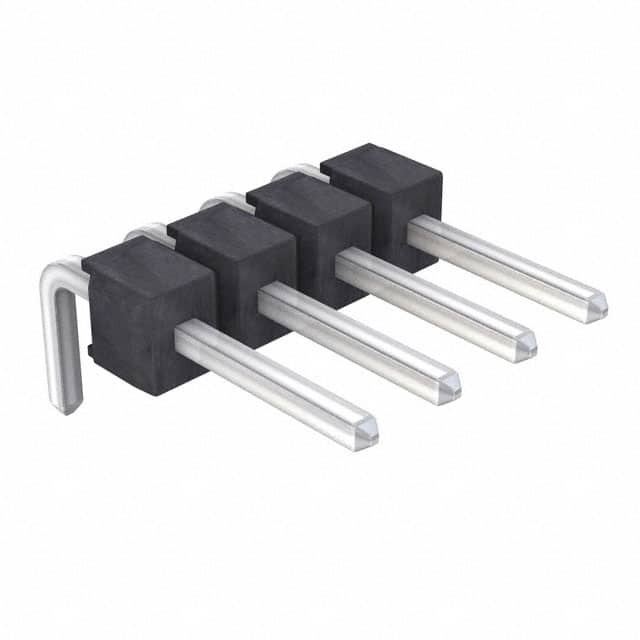

The Harwin M20-9750446 is a 4-position single row male pin header from the M20 series. It features a 2.54mm (0.100") pitch and right angle through-hole mounting with solder termination. The unshrouded header accepts both board-to-board and cable connections. The header can be cut to a smaller number of positions using the M20 Hand Cutting Tool Z1022-00.
Contacts are made of brass with a tin finish. The mating pin length is 5.80mm (0.228"). The insulation height is 2.54mm (0.100"). The housing is black polyamide (PA6T, Nylon 6T) with a UL94 V-0 flammability rating.
Electrical ratings include a maximum current of 3A per contact, initial contact resistance of 20mΩ maximum, dielectric withstanding voltage of 500V AC for 1 minute, and a minimum insulation resistance of 500MΩ. The operating temperature range is -40°C to +105°C. It also withstands vibration from 50 to 2000 Hz.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.19 | $0.19 |
| 10+ | $0.16 | $0.16 |
| 100+ | $0.14 | $0.14 |
| 250+ | $0.13 | $0.13 |
| 1,000+ | $0.12 | $0.12 |
| 3,000+ | $0.11 | $0.11 |
| 5,000+ | $0.10 | $0.10 |
| 10,000+ | $0.10 | $0.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.54mm (0.100")
4 positions, single row, all positions loaded.
3A maximum per contact.
Through hole, right angle, solder termination.
