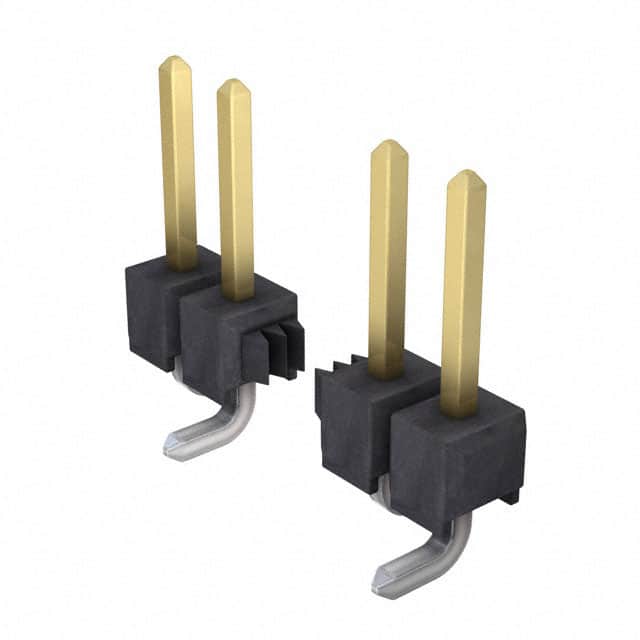

The Harwin M20-8770642 is a 6 position single row unshrouded male pin header from the M20 series. It features a 2.54mm (0.100") pitch and square pins with a mating pin height of 5.80mm. The connector is designed for surface mount soldering and is suitable for board-to-board or cable interconnection.
The header is rated for 3A per contact maximum current, with a maximum initial contact resistance of 20mΩ. It can withstand 500V AC dielectric withstanding voltage for 1 minute and has a minimum insulation resistance of 500MΩ. The operating temperature range is -40°C to 105°C.
The insulator is made of black polyamide (PA6T/Nylon 6T) with a UL94 V-0 flammability rating. The contacts are brass with a tin finish (manufacturer page indicates gold on contact area and tin on termination). The connector uses a push-pull fastening type and is unshrouded. It is packaged loose in bags.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.53 | $0.53 |
| 10+ | $0.45 | $0.45 |
| 100+ | $0.38 | $0.38 |
| 250+ | $0.34 | $0.34 |
| 1,000+ | $0.33 | $0.33 |
| 3,000+ | $0.31 | $0.31 |
| 5,000+ | $0.30 | $0.30 |
| 10,000+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M20-8770642 has 6 positions in a single row.
The pitch is 2.54mm (0.100").
The maximum current rating is 3A per contact.
The mounting type is surface mount (SMD).
The operating temperature range is -40°C to 105°C.
The contact finish is tin; the manufacturer page indicates gold on the contact area and tin on the termination.
