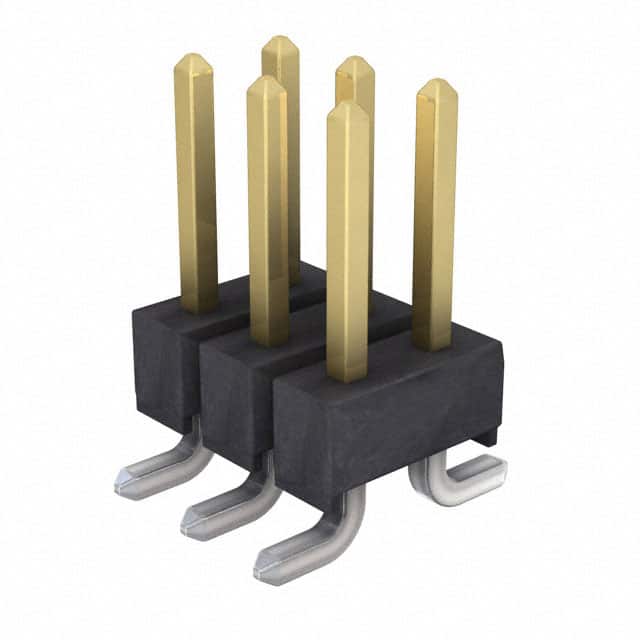

The Harwin M20-8760342R is a 6-position (3+3) double row male pin header from the M20 series. It features a 2.54mm (0.100") pitch and row spacing, with a straight surface mount (SMT) termination style suitable for board-to-board or cable interconnections. The unshrouded plug has a push-pull fastening type and square male pins with a 5.80mm mating pin height. Contact material is copper alloy, with gold plating on the contact area and tin on the termination. The housing is black polyamide (PA6T) rated UL94 V-0. Electrical ratings include 3A maximum current per contact, 250V maximum voltage, initial contact resistance of 20mΩ maximum, and dielectric withstanding voltage of 1000V AC for one minute. The connector operates over -40°C to 105°C and is packaged in tape and reel. The header can be cut to size using the M20 hand cutting tool Z1022-00.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.01 | $1.01 |
| 10+ | $0.86 | $0.86 |
| 100+ | $0.73 | $0.73 |
| 350+ | $0.67 | $0.67 |
| 700+ | $0.63 | $0.63 |
| 1,050+ | $0.58 | $0.58 |
| 2,450+ | $0.57 | $0.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions arranged in 2 rows of 3 (3+3).
2.54mm (0.100") pitch, with same row spacing of 2.54mm.
3A maximum per contact.
250V maximum.
Surface mount (SMT) with solder termination.
-40°C to 105°C.
Listed as RoHS3 compliant but unverified; treat as low-confidence.
