| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,300 pcs
|
1300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish - Mating | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Housing Material | |
| Insulation Color | |
| Insulation Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination |

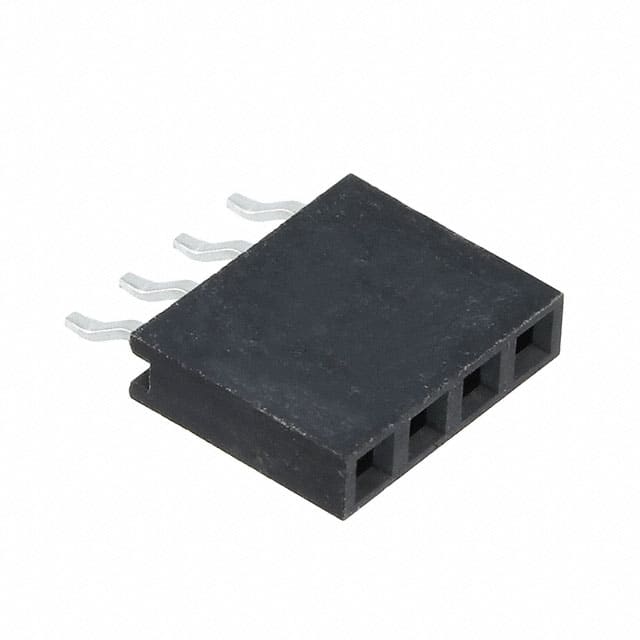

The Harwin M20-7910442R is a 4 position single row right angle surface mount receptacle from the M20 series of 2.54mm pitch connectors. It features a push-pull fastening type and is designed for board-to-board applications. The connector has a black high temperature thermoplastic housing with a UL94 V-0 flammability rating and operates over a temperature range of -40°C to 105°C.
The contacts are forked type with gold finish on the mating areas and tin finish on the terminations. The connector is rated for a maximum current of 3A per contact with an initial contact resistance of 20mΩ maximum. It is packaged in tape and reel for automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.01 | $1.01 |
| 10+ | $0.86 | $0.86 |
| 100+ | $0.73 | $0.73 |
| 500+ | $0.65 | $0.65 |
| 1,300+ | $0.61 | $0.61 |
| 2,600+ | $0.58 | $0.58 |
| 3,900+ | $0.56 | $0.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M20-7910442R has 4 positions in a single row, all loaded.
The pitch is 2.54mm (0.100 inches).
The maximum current rating is 3A per contact.
Surface mount, right angle orientation.
-40°C to 105°C.
Gold finish on mating contact areas, tin finish on terminations.
High temperature thermoplastic with UL94 V-0 rating.
