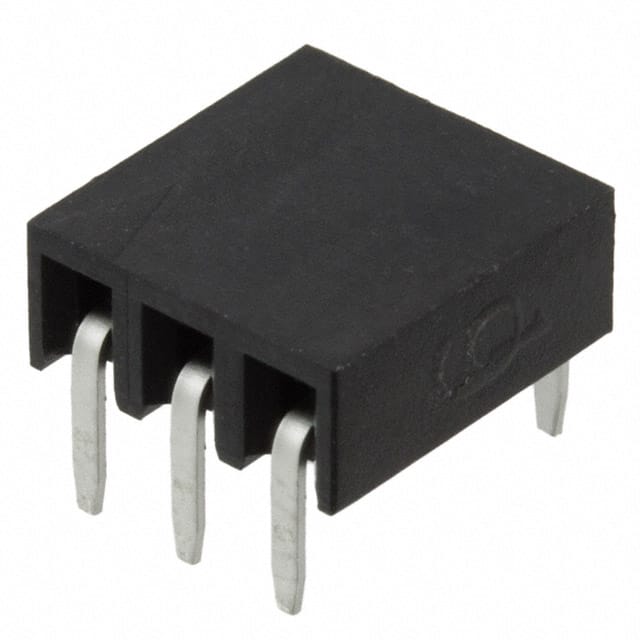

The M20-7890346 is a 3 position single row female socket receptacle from Harwin's M20 series of 2.54mm pitch connectors. It features a through hole right angle mounting style with solder termination, making it suitable for board-to-board or cable interconnections. The connector has a push-pull fastening type and is housed in a black high temperature thermoplastic insulator with UL94 V-0 flammability rating.
Electrical ratings include 3A maximum current per contact and 1000V working voltage. Contact resistance is 20mΩ max initial and 30mΩ after conditioning. Dielectric withstanding voltage is 500V AC for 1 minute, and insulation resistance is 500MΩ minimum. The operating temperature range is -40°C to 105°C.
Mechanical specifications: 2.54mm pitch, single row, 3.30mm insulation height, 3.00mm contact tail length. Contacts are tin plated with 100.0µin (2.54µm) thickness. The connector is packaged in tubes. It is designed for general purpose signal and power distribution in compact electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
| 10+ | $1.04 | $1.04 |
| 25+ | $0.79 | $0.79 |
| 78+ | $0.75 | $0.75 |
| 546+ | $0.69 | $0.69 |
| 1,014+ | $0.66 | $0.66 |
| 5,070+ | $0.59 | $0.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
2.54mm (0.100").
3A maximum.
1000V working voltage.
Through hole, right angle.
-40°C to 105°C.
Tin, 100.0µin (2.54µm) thickness.
