| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
495 pcs
|
495 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance (Maximum @ After conditioning) | |
| Contact Resistance (Maximum @ Initial) | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Housing Material | |
| Insulation Color | |
| Insulation Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Type | |
| Voltage Rating |

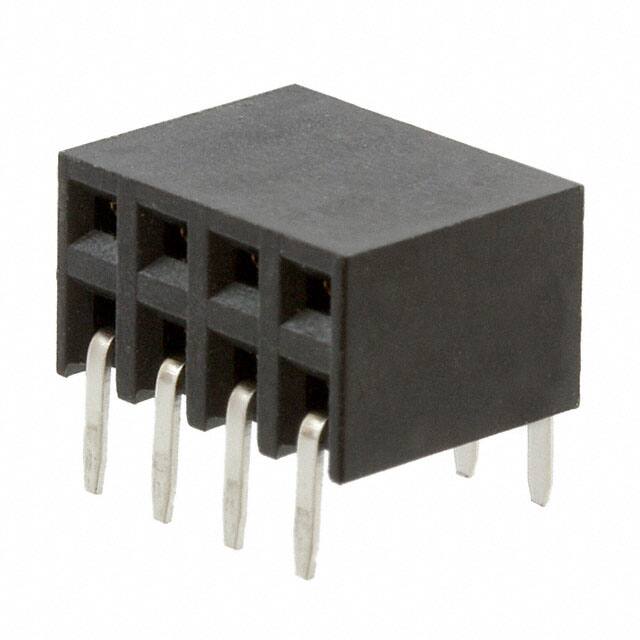

The M20-7880446 is a double row female receptacle from Harwin's M20 series of 2.54mm pitch connectors. This 8 position (4+4) connector features a right angle through hole termination with 3mm contact length, making it suitable for board-to-board or cable-to-board applications where space is constrained.
Electrical ratings include 3A maximum current per contact and 1000V maximum voltage, with an initial contact resistance of 20mΩ and insulation resistance of 1000MΩ minimum. The housing is made of high temperature thermoplastic with UL94 V-0 flammability rating, and the contacts are copper alloy with tin plating.
The connector is packaged in tubes and has a push-pull fastening type. It operates over a temperature range of -40°C to 105°C. This receptacle is designed for reliable interconnection in industrial, data communication, and general electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.70 | $1.70 |
| 10+ | $1.65 | $1.65 |
| 25+ | $1.29 | $1.29 |
| 110+ | $1.22 | $1.22 |
| 550+ | $1.09 | $1.09 |
| 1,045+ | $1.04 | $1.04 |
| 5,005+ | $0.98 | $0.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions (4+4 dual row).
2.54mm (0.100").
3A maximum.
1000V maximum.
Through hole, right angle.
Tin.
-40°C to 105°C.
