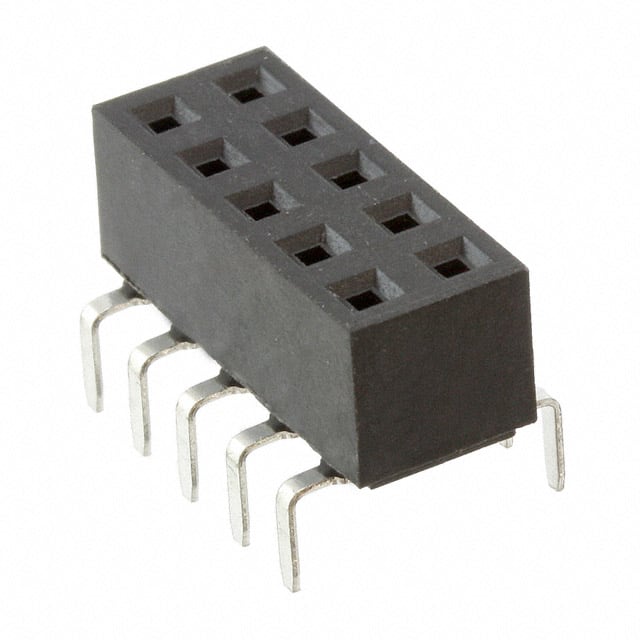

The Harwin M20-7850546 is a 10 position (5+5) dual row female receptacle connector from the M20 series. It features a 2.54mm pitch and a push-pull fastening type, designed for board-to-board or cable applications. The connector supports dual entry, suitable for both top and bottom entry configurations.
This through hole connector has a current rating of 3A per contact and a voltage rating of 1000V. It is constructed with a copper alloy contact material finished in tin, and a high temperature thermoplastic housing with a UL94 V-0 flammability rating. The operating temperature range is -40°C to 105°C.
The connector uses offset solder termination with a contact length of 3.00mm and an insulation height of 5.00mm. It is available in a DIL (Dual In Line) package with straight leads, and has a row spacing of 2.54mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.26 | $1.26 |
| 10+ | $1.24 | $1.24 |
| 25+ | $0.97 | $0.97 |
| 86+ | $0.97 | $0.97 |
| 516+ | $0.89 | $0.89 |
| 1,032+ | $0.77 | $0.77 |
| 2,537+ | $0.75 | $0.75 |
| 5,031+ | $0.69 | $0.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M20-7850546 has 10 positions arranged in a 5+5 dual row configuration.
The pitch is 2.54mm (0.100 inches).
The current rating is 3A per contact.
The voltage rating is 1000V.
The M20-7850546 uses through hole mounting with solder termination.
The operating temperature range is -40°C to 105°C.
The contact finish is tin.
