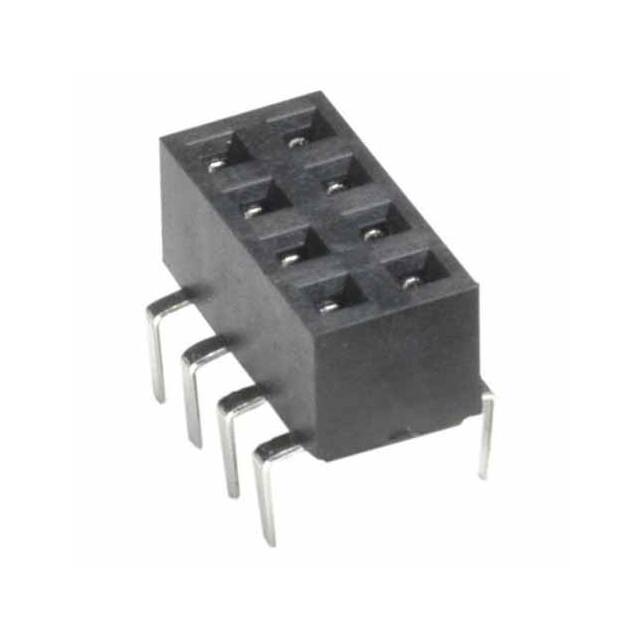

The M20-7850442 is a 2.54mm pitch female receptacle from the M20 series by Harwin Inc. It offers 8 positions arranged in a 2-row (4+4) dual-in-line configuration, with all positions loaded. The connector features a box section socket design with push-pull fastening and accepts female socket contacts.
The contact finish is Gold+Tin, ensuring reliable connectivity. The housing is made of high temperature thermoplastic rated UL94 V-0. Electrical ratings include a current rating of 3A per contact and a voltage rating of 1000V. Contact resistance is 20mΩ initial and 30mΩ after conditioning. Insulation resistance is 1000MΩ minimum. Operating temperature range is -40°C to 105°C.
Designed for through hole solder termination, this receptacle supports board-to-board or cable-to-board interconnections. It allows both top and bottom entry (dual entry), with a contact length of 3.00mm and insulation height of 5.00mm. The pitch is 2.54mm (0.100") with row spacing of 2.54mm.
Typical applications include industrial control, instrumentation, and general purpose interconnect systems where a compact, reliable connector is required. The part is RoHS3 compliant, MSL Level 1, and REACH unaffected (claims unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.90 | $0.90 |
| 25+ | $0.68 | $0.68 |
| 108+ | $0.65 | $0.65 |
| 540+ | $0.58 | $0.58 |
| 1,026+ | $0.55 | $0.55 |
| 5,022+ | $0.54 | $0.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M20-7850442 has 8 positions (arranged as 4+4), all loaded.
The pitch is 2.54mm (0.100"). Row spacing is also 2.54mm.
The current rating is 3A per contact, maximum.
The voltage rating is 1000V. (Note: datasheet specifies dielectric withstanding voltage of 500V AC for this series.)
Mounting type is through hole with solder termination.
The operating temperature range is -40°C to 105°C.
The housing material is rated UL94 V-0.
