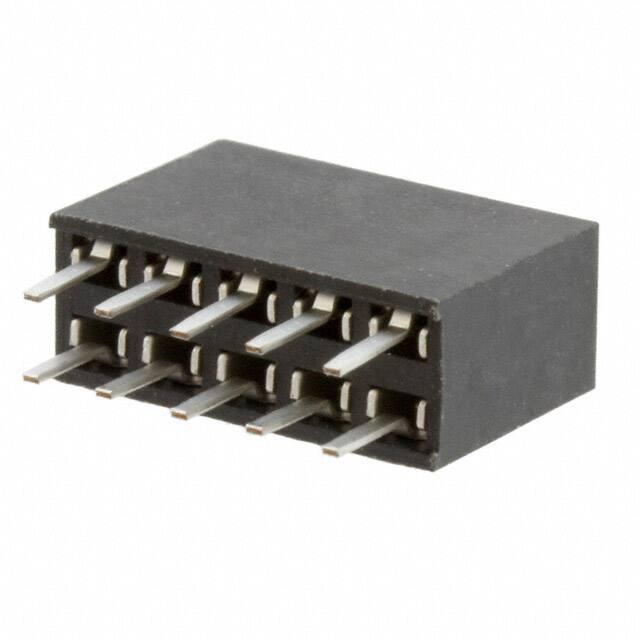

The Harwin M20-7830546 is a 10 position (5+5) double row female socket receptacle from the M20 series of 2.54mm pitch connectors. It features a push-pull fastening type and is designed for board-to-board or board-to-cable applications. The connector has a through hole mounting style with solder termination and a contact length of 3.00mm. The housing is made of high temperature thermoplastic with a UL94 V-0 flammability rating and black insulation color. The contacts are copper alloy with a tin finish. The connector is rated for a maximum current of 3A per contact and a voltage rating of 1000V. It has an operating temperature range of -40°C to +105°C. The mated stacking heights are 11.04mm and 12.63mm. The connector is packaged in tubes.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.68 | $1.68 |
| 10+ | $1.61 | $1.61 |
| 25+ | $1.29 | $1.29 |
| 88+ | $1.19 | $1.19 |
| 528+ | $1.07 | $1.07 |
| 1,012+ | $1.03 | $1.03 |
| 5,016+ | $0.92 | $0.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M20-7830546 has 10 positions (5+5) in a double row configuration.
The pitch is 2.54mm (0.100 inches).
The maximum current rating is 3A per contact.
The voltage rating is 1000V.
The mounting type is through hole with solder termination.
The operating temperature range is -40°C to +105°C.
The contact finish is tin.
