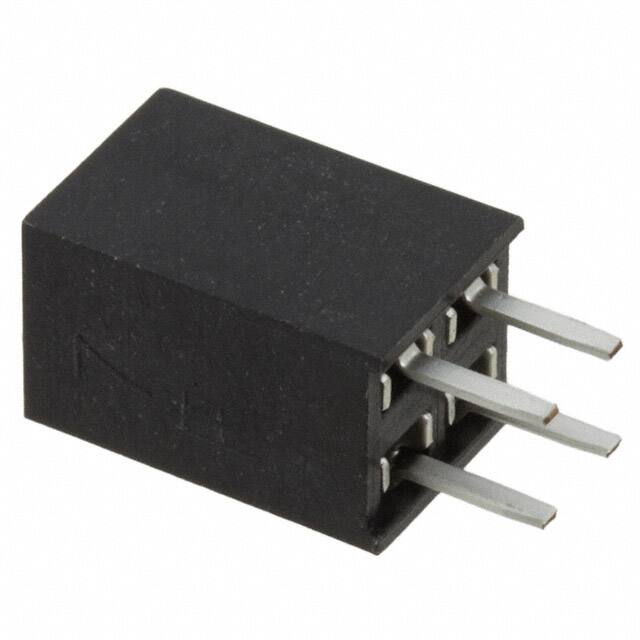

The Harwin M20-7830246 is a 4 position female receptacle from the M20 series of 2.54mm pitch PCB connectors. It features a double row straight through hole design with 3mm solder tails and an 8.5mm insulation height. The connector is rated for 3A per contact and 1000V maximum, with an operating temperature range of -40°C to 105°C. The housing is black UL94 V-0 rated thermoplastic, and contacts are finished in tin. This receptacle is suitable for board-to-board or cable applications and is packaged in tubes.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.10 | $1.10 |
| 10+ | $0.93 | $0.93 |
| 104+ | $0.79 | $0.79 |
| 208+ | $0.79 | $0.79 |
| 520+ | $0.70 | $0.70 |
| 1,040+ | $0.67 | $0.67 |
| 2,600+ | $0.64 | $0.64 |
| 5,096+ | $0.60 | $0.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 positions arranged in 2 rows.
The pitch is 2.54mm (0.100").
The maximum current rating is 3A per contact.
The maximum voltage rating is 1000V.
It uses through hole mounting with solder termination.
The operating temperature range is -40°C to 105°C.
The contact finish is tin.
