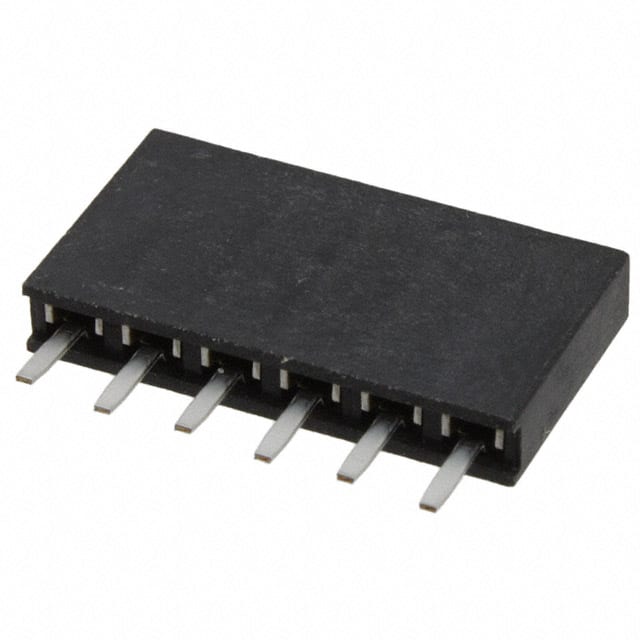

M20-7820646 6 position single row female receptacle connector with 2.54mm pitch, through hole solder termination, and tin plated contacts. Rated for 3A and 1000V.
Mfr Part #:

M20-7820646

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
6 position single row female receptacle connector with 2.54mm pitch, through hole solder termination, and tin plated contacts. Rated for 3A and 1000V.
✓ Total Stock: 36 pcs
$ Price Range: $0.62 - $1.14

M20-7820646 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
36 pcs
On Request
36 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M20-7820646 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Type
Current Rating (Amps)
Dielectric Withstanding Voltage
Fastening Type
Insulation Color
Insulation Height
Insulation Resistance
Lead Style
Mated Stacking Heights
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Style
Termination
Termination Style
Voltage Rating
View Similar Products (0)

M20-7820646 Description

Short technical summary and product information.

The Harwin M20-7820646 is a 6-position female receptacle connector from the M20 series, featuring a single row of contacts with 2.54mm (0.1") pitch. It is designed for through hole mounting with solder termination, making it suitable for board-to-board or cable connections.



The connector has a push-pull fastening type and is housed in a black UL94 V-0 rated thermoplastic insulator. Contacts are tin plated with a 3.00mm contact length and the insulation height is 8.51mm. Mated stacking heights of 11.04mm and 12.63mm are supported.



Electrical ratings include a current rating of 3A per contact and a voltage rating of 1000V. Contact resistance is 20mΩ max initially and 30mΩ max after conditioning. The operating temperature range is -40°C to 105°C. The connector is packaged in tubes.

M20-7820646 Quick Information

Product Type: Female Receptacle Connector
Series: M20-782
Canonical Name: Harwin M20-7820646 6 Position Female Receptacle Connector
Subcategory: Female Socket

M20-7820646 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M20-7820646 Estimated Pricing

Qty Low High
1+ $1.14 $1.14
10+ $1.10 $1.10
25+ $0.88 $0.88
108+ $0.82 $0.82
504+ $0.73 $0.73
1,008+ $0.71 $0.71
5,004+ $0.62 $0.62

Estimated market price range - modelled values for guidance only, not live distributor offers.

M20-7820646 Features

  • 6 position single row female receptacle.
  • 2.54mm pitch with through hole mounting.
  • Tin plated contacts rated for 3A.
  • Operating temperature range -40°C to 105°C.
  • UL94 V-0 rated thermoplastic housing.

M20-7820646 Applications

  • Board-to-board interconnection in electronic assemblies.
  • Cable-to-board connections in industrial equipment.
  • General purpose signal and power distribution.

M20-7820646 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the M20-7820646 have?

6 positions in a single row.

What is the pitch of this connector?

2.54mm (0.100 inch).

What is the current rating?

3A per contact.

What is the voltage rating?

1000V.

What is the mounting type?

Through hole with solder termination.

What is the operating temperature range?

-40°C to 105°C.

What is the contact finish?

Tin.
