| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Housing Material | |
| Insulation Color | |
| Insulation Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

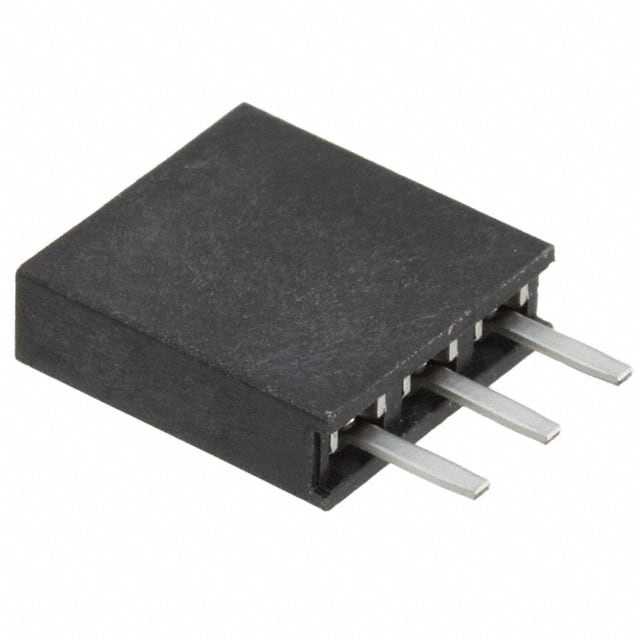

The Harwin M20-7820346 is a 3 position single row female socket receptacle from the M20 series of 2.54mm pitch PCB connectors. It features a through hole mounting style with straight solder terminations and a push-pull fastening mechanism. The connector has a black high temperature thermoplastic housing rated UL94 V-0 and tin plated copper alloy contacts.
Electrical ratings include a current rating of 3A per contact and a voltage rating of 1000V. Contact resistance is 20mΩ maximum initial and 30mΩ maximum after conditioning. Insulation resistance is 1000MΩ minimum and dielectric withstanding voltage is 1000V AC for 1 minute. The operating temperature range is -40°C to 105°C.
This receptacle is suitable for board-to-board or cable-to-board applications. It has a mated stacking height of 11.04mm or 12.63mm. The connector is packaged in tubes and has a straight lead style with 3.00mm contact length.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.88 | $0.88 |
| 10+ | $0.83 | $0.83 |
| 25+ | $0.65 | $0.65 |
| 71+ | $0.62 | $0.62 |
| 284+ | $0.60 | $0.60 |
| 568+ | $0.56 | $0.56 |
| 1,065+ | $0.52 | $0.52 |
| 5,041+ | $0.48 | $0.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M20-7820346 has 3 positions in a single row.
The pitch is 2.54mm (0.100 inches).
The current rating is 3A per contact.
The voltage rating is 1000V.
The mounting type is through hole.
The operating temperature range is -40°C to 105°C.
The contact finish is tin.
