Mfr Part #:

M20-7820246

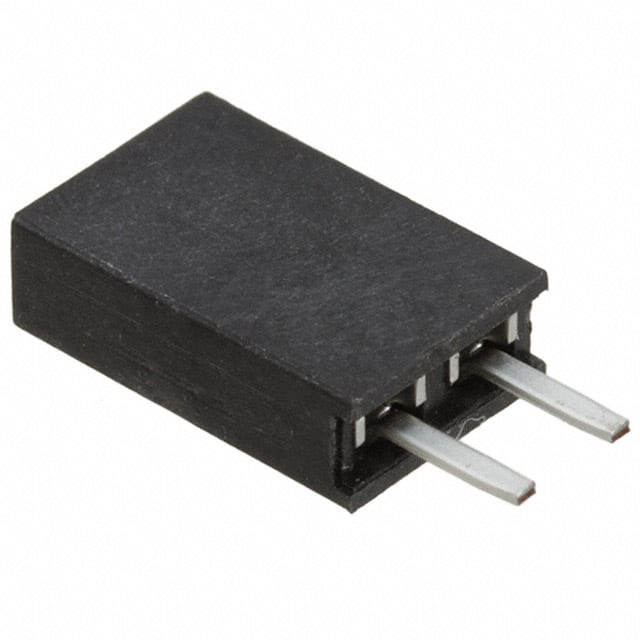

Name: M20-7820246
Brand: Harwin Inc.
SKU: M20-7820246

Mfr Name: Harwin Inc.

Description:

CONN RCPT 2POS 0.1 TIN PCB

Stock on Request

M20-7820246 Description

Short technical summary and product information.

CONN RCPT 2POS 0.1 TIN PCB

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

M20-7820242

Harwin Inc.

CONN RCPT 2POS 0.1 GOLD PCB

Category	Headers, Receptacles, Female Sockets
Manufacturer Name	Harwin Inc.
Connector Type	Receptacle
Contact Finish	Tin
Contact Length	0.118" (3.00mm)
Contact Type	Female Socket
Current Rating (Amps)	3A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Mated Stacking Heights	11.04mm, 12.63mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature	-40°C ~ 105°C
Pitch	0.100" (2.54mm)
Style	Board to Board or Cable
Termination	Solder
Voltage Rating	1000V
