| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Ingress Protection | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Voltage Rating |

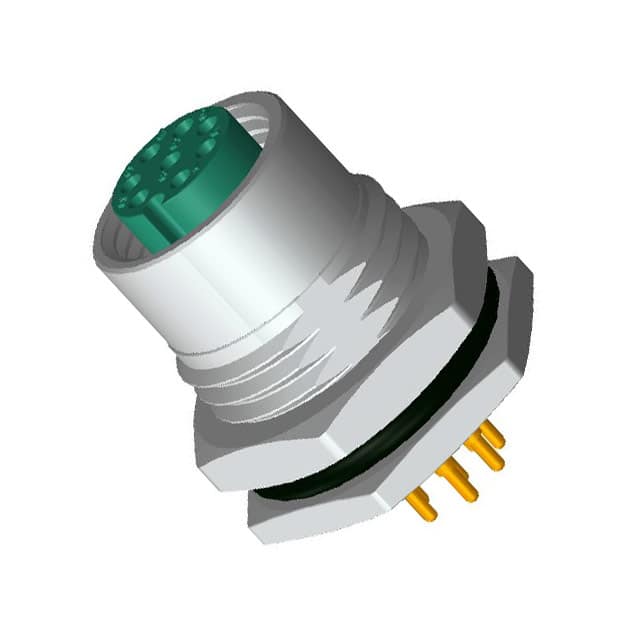

The M12A-08PFFP-SF8001 from Amphenol LTW is a circular connector receptacle designed for use in harsh environments. It features 8 female socket contacts with gold plating, arranged in an M12-8 shell size with A-coding orientation. The connector is shielded and offers IP68/IP69K ingress protection, making it suitable for applications requiring resistance to dust, water immersion, and high-pressure washdowns.
This connector is designed for panel mount installation with a bulkhead front side nut mounting feature. Termination is via solder connection to the pins, which are gold-plated for reliable conductivity and corrosion resistance. The shell is made of zinc alloy with a nickel finish, providing durability and a silver color appearance.
Electrically, the connector is rated for a voltage of 30VAC/DC and a current of 2A per contact. The operating temperature range is -40°C to 105°C, allowing use in a wide variety of industrial environments. The shielding ensures electromagnetic compatibility in sensitive applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.32 | $8.32 |
| 10+ | $7.12 | $7.12 |
| 20+ | $6.67 | $6.67 |
| 50+ | $6.35 | $6.35 |
| 100+ | $5.51 | $5.51 |
| 200+ | $5.41 | $5.41 |
| 500+ | $5.18 | $5.18 |
| 1,000+ | $5.14 | $5.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
2A per contact.
30VAC/DC.
Panel mount with through hole solder termination, using a bulkhead front side nut.
IP68/IP69K - dust tight, water resistant, waterproof.
Yes, it is shielded.
-40°C to 105°C.
