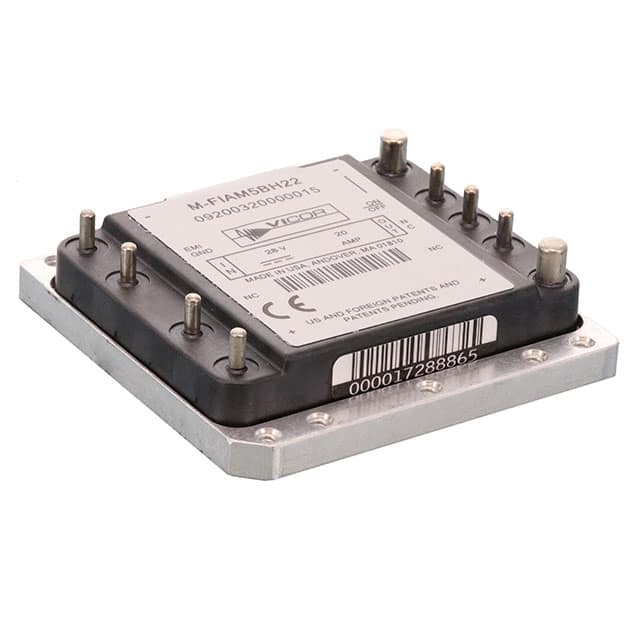

The Vicor M-FIAM5BH22 is a DC front-end module designed to provide essential EMI filtering and transient protection for power systems. This rugged input filter module is specifically engineered for use with Vicor's Maxi, Mini, and Micro DC-DC converters, ensuring compatibility and reliable performance.
Key specifications include an input voltage range of 180 to 375 VDC and an output current capability of 3A. The M-FIAM5BH22 meets conducted emission and susceptibility requirements per MIL-STD-461E and input transient surge requirements per MIL-STD-704E/F. It operates within a temperature range of -40 to 100°C.
The module features a short tin/lead pin style and a slotted baseplate for mounting. Its dimensions are 2.28" x 2.2" x 0.5". This component is suitable for applications requiring robust power conditioning and protection in demanding environments.
Designed for integration into military and aerospace applications, the M-FIAM5BH22 enhances the reliability and longevity of the power delivery network by mitigating electrical disturbances.
The input voltage range is 180 to 375 VDC.
The output current rating is 3 A.
It meets MIL-STD-704E/F transient compliance.
The operating temperature range is -40 to 100 °C.
The dimensions are 2.28" x 2.2" x 0.5" (57.9 x 55.9 x 12.7 mm).
It uses short tin/lead pins.
It is compatible with 300 Vin Maxi, Mini, and Micro modules.
