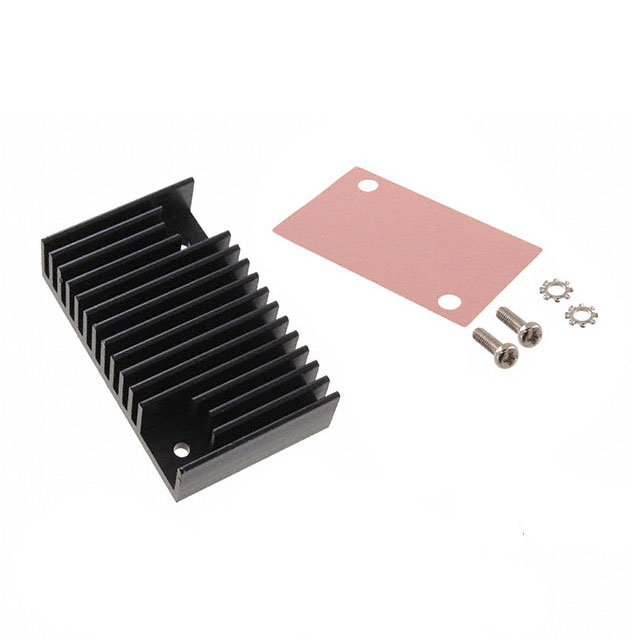

M-C655 HEAT SINK

The Cincon M-C655 is a heat sink kit designed for DC/DC converters and other baseplate packages. It is constructed from aluminum AL6063 for optimal heat transfer and features a black anodize plating.

Stock on Request

M-C655 HEAT SINK Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Accessories
Manufacturer Name	Cincon Electronics Co. LTD
Finish	Black Anodize Plating
Halogen Free	No
Material	Aluminum AL6063

View Similar Products (0)

M-C655 HEAT SINK Description

Short technical summary and product information.

This heat sink kit, part number M-C655 from Cincon Electronics Co. LTD, is engineered for efficient thermal management of DC/DC converters and similar baseplate packages. Constructed from aluminum AL6063, it ensures optimal heat transfer capabilities. The kit features a black anodize plating for durability and a sleek finish.

The M-C655 is designed with transverse fins and has a height of 12.7mm, specifically suited for LB 2.05”x1.2” DC/DC converter packages. It offers a thermal resistance of 8.99°C/W under natural convection, improving to 3.29°C/W at 100 LFM, 2.73°C/W at 200 LFM, 2.40°C/W at 300 LFM, and 2.10°C/W at 400 LFM. Mounting hardware and thermal pads are available separately.

This accessory is packaged in a tray and is RoHS3 Compliant, REACH Unaffected, with a Moisture Sensitivity Level (MSL) of 1 Unlimited. It is designed to enhance the performance and longevity of power electronic components by dissipating excess heat effectively.

M-C655 HEAT SINK Quick Information

Product Type: Heat Sink Kit

Series: M-C655

Canonical Name: Heat Sink Kit

M-C655 HEAT SINK Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: No

M-C655 HEAT SINK Features

Constructed of aluminum AL6063 for heat transfer.
Finished with black anodize plating.
Designed for DC/DC converters.
12.7mm height for LB 2.05”x1.2” packages.
Thermal resistance as low as 2.10°C/W at 400 LFM.

M-C655 HEAT SINK Applications

Enhances DC/DC converter thermal performance.
Suitable for baseplate mounted components.
Improves reliability of power modules.
Used in applications requiring heat dissipation.

M-C655 HEAT SINK FAQs

5 frequently asked questions generated from this part’s specifications.

What is the thermal resistance of the M-C655 heat sink kit under natural convection?

The thermal resistance of the M-C655 heat sink kit is 8.99°C/W under natural convection.

What is the height of the M-C655 heat sink kit?

The heatsink height for the M-C655 kit is 12.7mm.

What material is the M-C655 heat sink kit made from?

The M-C655 heat sink kit is constructed of aluminum AL6063.

What is the finish on the M-C655 heat sink kit?

The M-C655 heat sink kit is finished with black anodize plating.

What DC/DC package types is the M-C655 heat sink kit designed for?

The M-C655 heat sink kit is designed for LB 2.05”x1.2” DC/DC package types with transverse fins.
