| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Finish | |
| For Use With | |
| Material | |
| SVHC Present |

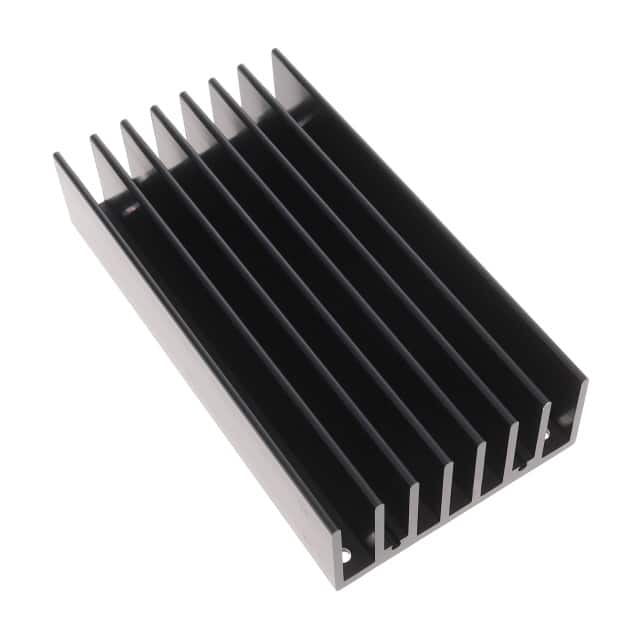

The Cincon M-B012 heat sink kit is constructed from aluminum AL6063 for optimal heat transfer and finished with black anodize plating. It is specifically designed for DC/DC converters and other baseplate packages.
This heat sink is suitable for Full Brick package types, with a height of 25.4mm and a longitudinal fin style. It offers a thermal resistance of 2.4°C/W under natural convection, 1.76°C/W at 100 LFM, 1.17°C/W at 200 LFM, 1.0°C/W at 300 LFM, and 0.83°C/W at 400 LFM.
Mounting hardware and thermal pads are available separately. This accessory is designed to enhance the thermal performance of compatible power modules.
The thermal resistance of the M-B012 heat sink kit for a Full Brick longitudinal configuration is 2.4°C/W at natural convection, 1.76°C/W at 100 LFM, 1.17°C/W at 200 LFM, 1.0°C/W at 300 LFM, and 0.83°C/W at 400 LFM.
The M-B012 heat sink kit is designed for Full Brick DC/DC converter packages.
The M-B012 heat sink kit is constructed of aluminum AL6063.
The M-B012 heat sink kit is finished with black anodize plating.
The M-B012 heat sink kit is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the M-B012 heat sink kit is 1 Unlimited.
The M-B012 heat sink kit is REACH Unaffected.
