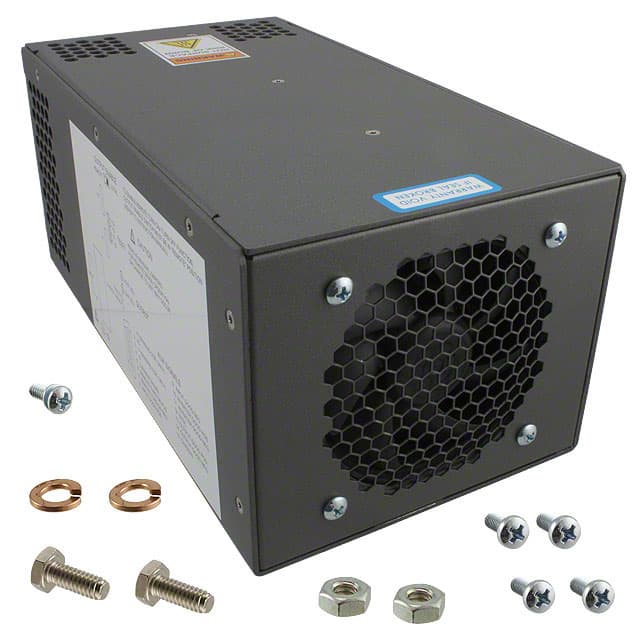

The TDK Corporation LZSA-1000-2 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a 1000W output power with a current rating of 84A and features adjustable output, load sharing, and power factor correction (PFC).
This converter has a universal input and can also accept a DC input. It is built with conformal coating for enhanced durability and operates within a wide temperature range of -40°C to 71°C, with derating applied at higher temperatures. The unit is designed for chassis mounting and includes features for remote on/off and remote sense capabilities.
Key electrical specifications include an efficiency of 84% and an isolation voltage of 3 kV. The dimensions are 266.7mm in length, 142.7mm in width, and 120.7mm in height. It has a single output and is approved by CE.
Compliance information indicates RoHS3 compliance, an MSL of 1, and REACH unaffected status. The part number for TDK Corporation is 285-2728-ND.
The LZSA-1000-2 provides a single 12V output at 84A.
The LZSA-1000-2 is rated for 1000W output power.
The LZSA-1000-2 has an efficiency of 84%.
The LZSA-1000-2 operates from -40°C to 71°C with derating.
The LZSA-1000-2 is designed for chassis mounting.
The LZSA-1000-2 provides 3kV isolation voltage.
The LZSA-1000-2 includes adjustable output, DC input capability, load sharing, PFC, remote on/off, remote sense, and universal input.
