| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Beam Angle | |
| Configuration | |
| Current | |
| Height | |
| Lens Type | |
| Light Emitting Surface (LES) | |
| Operating Temperature | |
| Thermal Resistance | |
| Type |

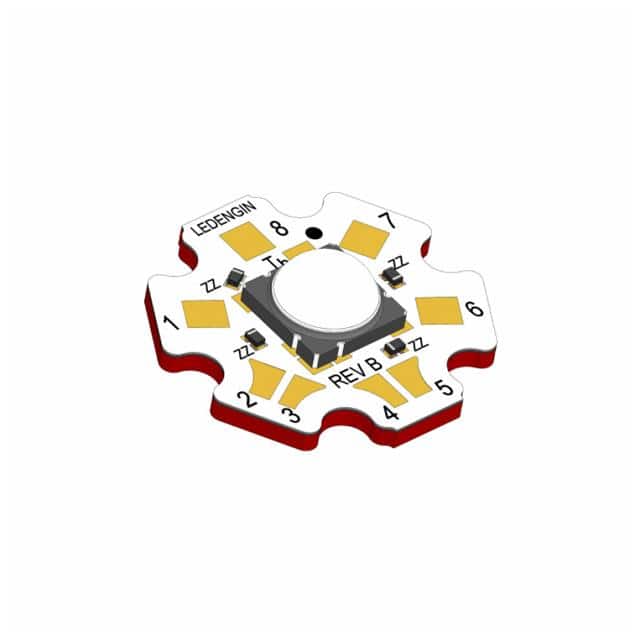

The Osram LZ4-V0UBH0-00U8 is an LED module from the LuxiGen series, designed for various lighting applications. This module emits violet light within the 380-440 nm spectrum.
Key specifications include a total radiant flux of 4.8 to 7.5 W at 700 mA, and an electrical power rating of 9.8 W. The module has a wide beam angle of 110° and a domed lens type. Its dimensions are 19.9 mm in diameter and 5.4 mm in height, with a light-emitting surface diameter of 6.20 mm.
The operating temperature range for this LED module is from -40°C to 130°C. The MCPCB diameter is 19.9 mm, and the thermal resistance is 0.1 K/W. This component is suitable for applications in industrial settings, robotics, home and building automation, material processing, projection and display, factory automation, appliances, access control, security, and medical imaging.
This LED module is mounted on a 4-channel star MCPCB. For optimal performance, proper thermal management is crucial, involving the use of thermal interface materials between the MCPCB and a heat sink.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The color of emission is Violet (380-440 nm).
The operating temperature range is -40 °C to 130 °C.
The beam angle is 110 °.
The current rating is 700 mA.
The dimensions are 19.9 mm in diameter and 5.4 mm in height.
The total radiant flux is between 4.8 and 7.5 W.
