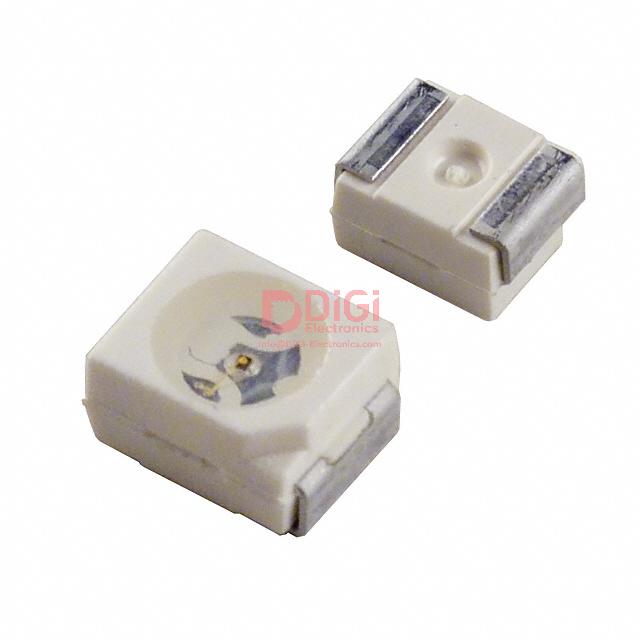

LYT67D The ams-OSRAM LYT67D-U1V2-36-1-20-R18-Z is a yellow LED with a 2.3V forward voltage and a 120° viewing angle. It comes in a 2-PLCC surface mount package.
Mfr Part #:

LYT67D

Available from 1 distributors
Mfr Name: Osram
Osram
The ams-OSRAM LYT67D-U1V2-36-1-20-R18-Z is a yellow LED with a 2.3V forward voltage and a 120° viewing angle. It comes in a 2-PLCC surface mount package.
✓ Total Stock: 220 pcs
$ Price Range: $1.20

LYT67D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
220 pcs
On Request
220 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LYT67D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Forward Voltage
Lens Diameter
Millicandela Rating
Mounting Type
SVHC Present
Viewing Angle
View Similar Products (0)

LYT67D Description

Short technical summary and product information.

This ams-OSRAM LYT67D-U1V2-36-1-20-R18-Z is a discrete yellow LED designed for indication purposes. It operates at a typical forward voltage of 2.3V and draws 20mA test current, producing a luminous intensity of 738mcd at a dominant wavelength of 590nm.



The LED features a wide 120° viewing angle, making it suitable for various display and signaling applications. Its 2-PLCC package is designed for surface mounting, facilitating automated assembly processes.



Key electrical characteristics include a 2.3V typical forward voltage and a 590nm dominant wavelength, ensuring a distinct yellow light output. The 2.40mm lens diameter contributes to its optical performance. This component is ideal for applications requiring reliable visual indication.



Packaged for surface mounting, the 2-PLCC form factor is standard for many electronic assemblies. The clear, colorless lens ensures optimal light transmission. This LED is part of the TOPLED® series.

LYT67D Quick Information

Product Type: LED
Series: TOPLED®
Canonical Name: ams-OSRAM LYT67D-U1V2-36-1-20-R18-Z Yellow LED

LYT67D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LYT67D Estimated Pricing

Qty Low High
1+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

LYT67D Features

  • Yellow LED for discrete indication.
  • Typical forward voltage of 2.3V.
  • 590nm dominant wavelength for yellow light.
  • Wide 120° viewing angle.
  • Surface mount 2-PLCC package.

LYT67D Applications

  • Ideal for status indicator lights.
  • Suitable for panel mount signaling.
  • Used in electronic device displays.
  • Applications requiring wide visibility.

LYT67D FAQs

7 frequently asked questions generated from this part’s specifications.
What is the forward voltage of the LYT67D?

2.3V typical at 20mA test current.

What is the package type of the LYT67D?

2-PLCC surface-mount package.

What is the dominant wavelength of the LYT67D?

590nm.

What is the luminous intensity of the LYT67D?

738mcd typical at 20mA.

What is the viewing angle of the LYT67D?

120°.

What is the lens diameter of the LYT67D?

2.4mm.

What is the test current for the LYT67D?

20mA.
