| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Axis | |
| Bandwidth | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Range ° | |
| Sensitivity (mV | |
| Tape & Reel | |
| Tape and Reel | |
| Type | |
| Voltage |
The STMicroelectronics LY3200ALHTR is a single-axis MEMS gyroscope designed for measuring angular rate along the yaw axis. It provides high performance with a full-scale range of ±2000 dps and a -3 dB bandwidth up to 140 Hz.
This gyroscope features a wide extended operating temperature range from -40°C to +85°C, ensuring stability over varying conditions. It operates on a single supply voltage between 2.7V and 3.6V with low power consumption. The output is an analog voltage, allowing for high levels of integration.

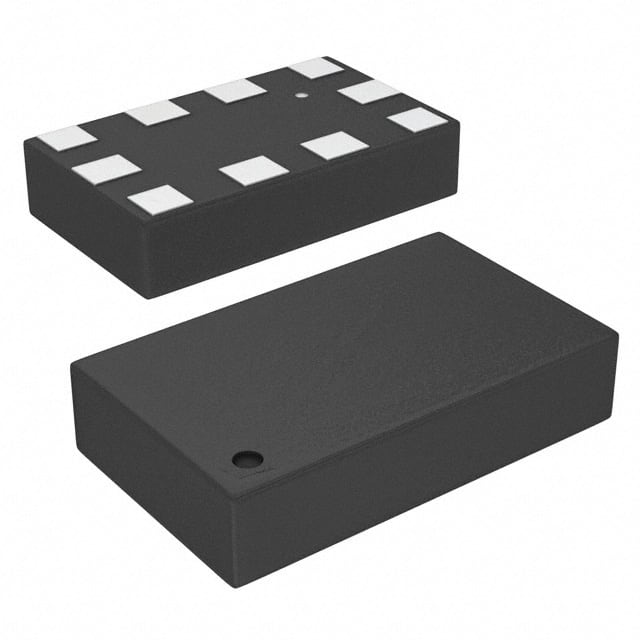

The LY3200ALHTR is available in a compact 10-lead LGA (Land Grid Array) package, measuring 3x5x1 mm. It is suitable for applications such as gaming, pointing devices, motion control, industrial automation, and robotics.
Key features include integrated low-pass filters, sleep mode, embedded power-down, and self-test capabilities. The device also boasts high shock and vibration survivability.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LY3200ALHTR operates from a 2.7V to 3.6V single supply.
The LY3200ALHTR is available in a 10-lead LGA package.
The operating temperature range for the LY3200ALHTR is -40°C to +85°C.
The LY3200ALHTR is RoHS3 Compliant.
The LY3200ALHTR has a full-scale range of ±2000 dps.
The LY3200ALHTR has a -3 dB bandwidth up to 140 Hz.
The sensitivity of the LY3200ALHTR is 0.67 mV/°/s.
