| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
98 pcs
|
98 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Power Consumption | |
| Relay Type | |
| Release Time | |
| Storage Temperature | |
| Switching Voltage | |
| Tape & Reel | |
| Termination Style |

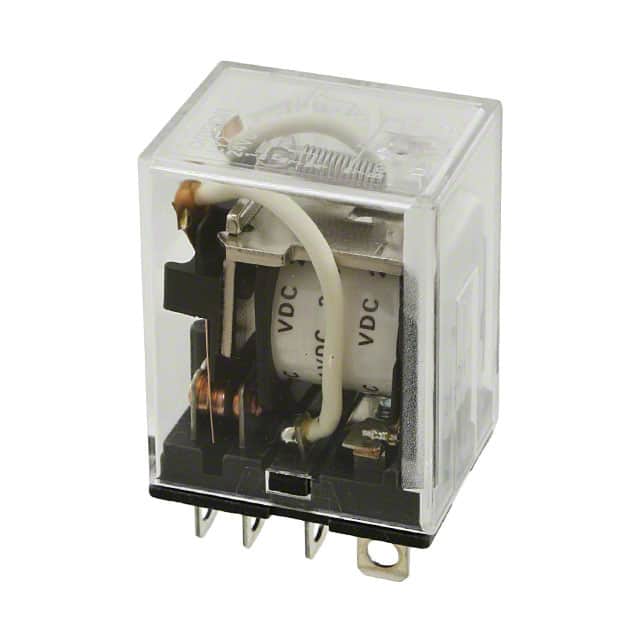

The Omron LY2-DC12 is a general purpose relay designed for power switching applications. It features a DPDT (2 Form C) contact configuration, capable of handling a current rating of 10A and a switching voltage of up to 250VAC or 125VDC.
This relay operates with a 12VDC coil voltage and has a coil current of 75 mA. The non-latching coil type ensures reliable operation. It offers an operate and release time of 25 ms, with a must-operate voltage of 9.6 VDC and a must-release voltage of 1.2 VDC.
The LY2-DC12 is socketable and features plug-in termination style for easy integration. It is designed to operate within an ambient temperature range of -25°C to 55°C. The contact material is Silver Alloy, ensuring durability and performance.
This relay is compliant with RoHS3 standards and has an MSL rating of 1. Its general purpose relay type makes it suitable for a wide range of industrial and electronic applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage of the LY2-DC12 relay is 12 VDC.
The contact rating is 10 A.
It can switch up to 250 VAC and 125 VDC.
The relay operates within -25°C to 55°C.
It uses socketable mounting with plug-in termination.
