| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45,000 pcs
|
45000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Current Forward (Maximum @ Maximum) | |
| Dominant Wavelength | |
| Flux Luminous (Minimum/Maximum) | |
| Height | |
| Height (Max) | |
| Intensity Luminous (Minimum/Maximum @ IF = 50 mA) | |
| Lead Style | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Supplier Device Package | |
| Technology | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

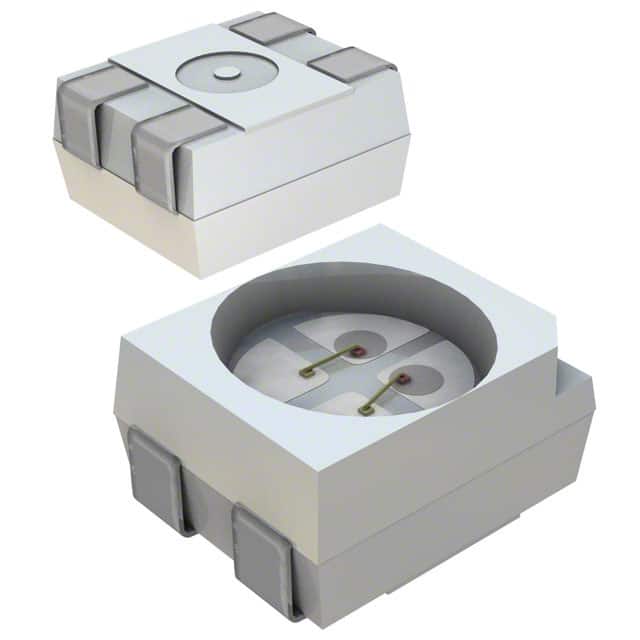

The Osram LY E6SF-AABA-46-1-Z is a yellow LED from the Power TOPLED series, designed for high luminous efficacy. It features a white PLCC-4 package with clear silicone resin and a thin-film InGaAlP technology.
This LED operates with a typical forward voltage of 2.15V and a typical forward current of 50mA, with a maximum forward current of 70mA. It provides a luminous intensity ranging from 1120 to 2240 mcd and a luminous flux between 3780 and 6060 mlm. The dominant wavelength is 590nm, and it offers a wide viewing angle of 120°.
Designed for surface mounting, the LED has dimensions of 3.20mm L x 2.80mm W and a maximum height of 2.10mm. Its clear, round lens with a flat top ensures optimal light distribution. The dominant wavelength is 590nm.
Ideal applications include signaling, backlighting, automotive interior and exterior lighting, and signal and symbol luminaries. Its robust design and high performance make it suitable for demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage is 2.15V.
The luminous intensity is between 1120 and 2240 mcd at 50 mA.
The viewing angle is 120°.
It is supplied in a 4-PLCC package.
The dominant wavelength is 590nm.
