| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CCT (K) | |
| CRI (Color Rendering Index) | |
| Color | |
| Current | |
| Flux @ 85ﾂｰC, Current | |
| Height | |
| Length | |
| Lumens | |
| Mounting Type | |
| Viewing Angle | |
| Voltage | |
| Width |

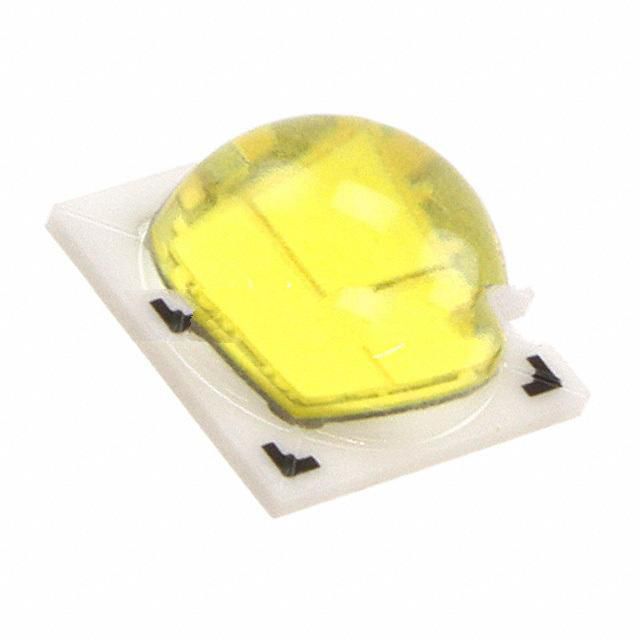

The Lumileds LXR8-QW30 is an illumination-grade, multi-die LED designed for outdoor and industrial lighting applications. It offers a warm white light with a correlated color temperature (CCT) of 3000K and a high color rendering index (CRI) of 80.
This LED provides a luminous efficacy of 108 lm/W and a typical luminous flux of 850lm at 85°C and 2.8A. It has a wide viewing angle of 120°.
The LXR8-QW30 is designed for surface mounting and comes in a 2828 (7070 Metric) package. Its dimensions are 7.00mm x 7.00mm with a height of 3.87mm.
Key features include its high flux density, enabling compact fixture designs, and its suitability for applications requiring consistent color from LED to LED.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Lumileds LXR8-QW30 LED has a color temperature of 3000K.
The luminous efficacy of the LXR8-QW30 LED is 108 lm/W.
The viewing angle of the Lumileds LXR8-QW30 is 120°.
The LXR8-QW30 LED is supplied in a 2828 (7070 Metric) package.
The Lumileds LXR8-QW30 LED is designed for surface mounting.
