| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18,531 pcs
|
18531 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,415 pcs
|
5415 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,250 pcs
|
1250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | 12+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CCT (K) | |
| CRI (Color Rendering Index) | |
| Color | |
| Current | |
| Height | |
| Length | |
| Lumens | |
| Luminous Efficacy | |
| Mounting Type | |
| Thermal Resistance | |
| Viewing Angle | |
| Voltage | |
| Width |

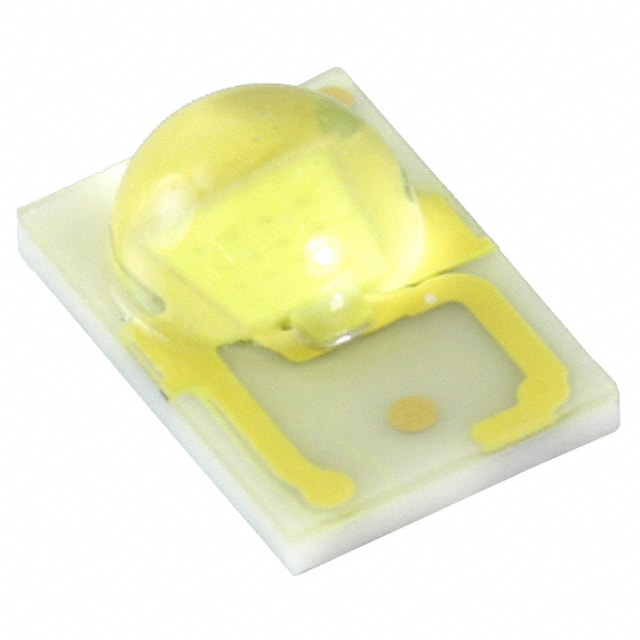

The Lumileds LXML-PWC1-0100 is a general-purpose white LED from the LUXEON Rebel series, suitable for various lighting and illumination applications. This LED offers a cool white light with a color temperature ranging from 4500K to 10000K and a typical Color Rendering Index (CRI) of 70.
Key electrical characteristics include a typical forward voltage of 3V and a test current of 350mA, with a maximum current of 1A. It provides a luminous efficacy of 100 lm/W at the test current and a typical luminous flux of 105lm at 25°C. The LED has a wide viewing angle of 120°.
Mechanically, the LXML-PWC1-0100 is housed in an 1812 (4532 Metric) surface mount package, measuring 4.49mm in length and 3.05mm in width, with a maximum seated height of 2.10mm. It has a typical thermal resistance of 10°C/W, indicating the need for adequate heat dissipation during operation.
This component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited, making it suitable for standard manufacturing processes. It is designed for use in applications requiring reliable white light output.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the LXML-PWC1-0100 LED is 3V.
The typical operating current for the LXML-PWC1-0100 LED is 350mA.
The LXML-PWC1-0100 LED has a viewing angle of 120°.
The color temperature range for the LXML-PWC1-0100 LED is 4500K to 10000K.
The LXML-PWC1-0100 LED is supplied in an 1812 (4532 Metric) surface mount package.
