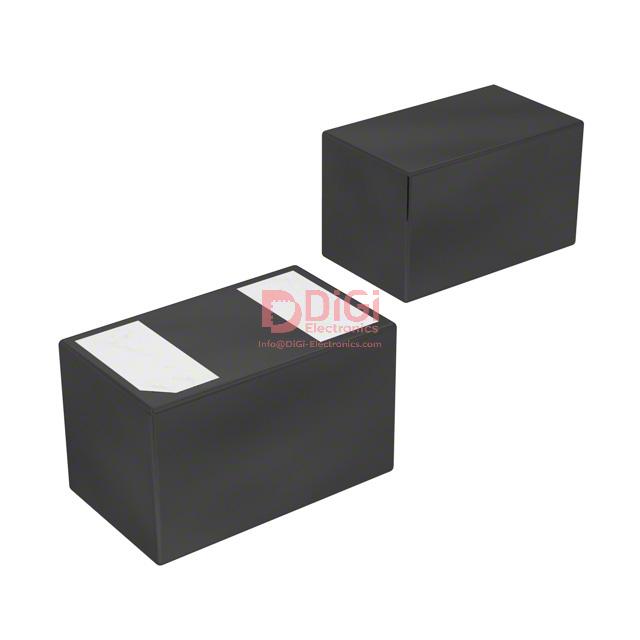

LXES1UTAA1-157 The Murata LXES1UTAA1-157 is a TVS Diode designed for general purpose applications. It features a 6V reverse standoff voltage and a 7V breakdown voltage.
Mfr Part #:

LXES1UTAA1-157

Available from 2 distributors
Mfr Name: Murata
Murata
The Murata LXES1UTAA1-157 is a TVS Diode designed for general purpose applications. It features a 6V reverse standoff voltage and a 7V breakdown voltage.
✓ Total Stock: 12,500 pcs
$ Price Range: $0.99

LXES1UTAA1-157 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chipinstock Limited ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request 26+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request 1928+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LXES1UTAA1-157 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Bidirectional Channels
Capacitance @ Frequency
Halogen Free
Mounting Type
Operating Temperature
Package / Case
Power Line Protection
Supplier Device Package
Type
Voltage
View Similar Products (0)

LXES1UTAA1-157 Description

Short technical summary and product information.

The Murata LXES1UTAA1-157 is a transient voltage suppressor (TVS) diode from the LXESxxT series, designed for general-purpose applications requiring robust ESD protection.



This device operates with a 6V reverse standoff voltage and a minimum breakdown voltage of 7V. It offers a typical capacitance of 0.5pF at 1MHz, making it suitable for high-frequency circuits. The TVS diode is rated for ESD protection according to IEC 61000-4-2 at +/-15kV for air discharge and +/-8kV for contact discharge, with a surge capability of 1.5A per IEC 61000-4-5 (8/20μs).



Designed for surface mounting, the LXES1UTAA1-157 comes in a compact 2-DFN (1x0.6) package. It operates within a temperature range of -40°C to 85°C. This component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.



Ideal for protecting sensitive electronic components from transient voltage events, this TVS diode is a reliable choice for various electronic designs.

LXES1UTAA1-157 Quick Information

Product Type: TVS Diode
Series: LXESxxT
Canonical Name: Murata LXES1UTAA1-157 TVS Diode
Subcategory: TVS Diodes

LXES1UTAA1-157 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LXES1UTAA1-157 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

LXES1UTAA1-157 Features

  • 6V reverse standoff voltage.
  • 7V minimum breakdown voltage.
  • 0.5pF capacitance at 1MHz.
  • Surface mount 2-DFN package.
  • IEC 61000-4-2 ESD protection.

LXES1UTAA1-157 Applications

  • Protects circuits from voltage transients
  • Suitable for high-frequency signal lines
  • Used in general-purpose circuit protection
  • Ideal for compact electronic devices

LXES1UTAA1-157 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the reverse working voltage of the LXES1UTAA1-157?

The reverse working voltage is 6V.

What is the minimum breakdown voltage for the LXES1UTAA1-157?

The minimum breakdown voltage is 7V.

What is the capacitance of the LXES1UTAA1-157 at 1MHz?

The capacitance is 0.5pF at 1MHz.

What is the operating temperature range for this TVS diode?

The operating temperature range is -40°C to 85°C.

What package type is the LXES1UTAA1-157 supplied in?

It is supplied in a 2-DFN (1x0.6) package for surface mounting.

What are the ESD protection ratings for the LXES1UTAA1-157?

It offers +/-15kV ESD protection via air discharge and +/-8kV via contact discharge per IEC 61000-4-2.
