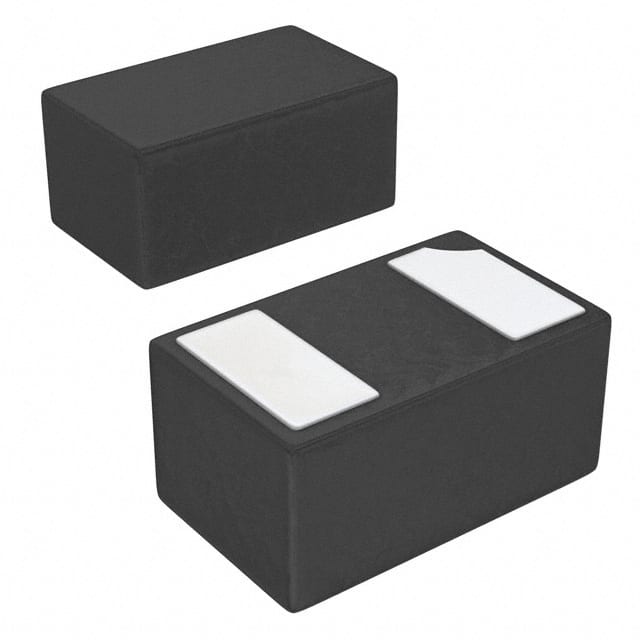

LXES1UBBB1-008 The Murata LXES1UBBB1-008 is a TVS Diode with a 6V working voltage. It offers ESD protection and features a low capacitance of 0.5pF.
Mfr Part #:

LXES1UBBB1-008

Available from 2 distributors
Mfr Name: Murata
Murata
The Murata LXES1UBBB1-008 is a TVS Diode with a 6V working voltage. It offers ESD protection and features a low capacitance of 0.5pF.
✓ Total Stock: 3,833 pcs
$ Price Range: $0.99

LXES1UBBB1-008 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
2,030 pcs
On Request
2030 pcs On Request 1 On Request On Request 1236+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,803 pcs
On Request
1803 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LXES1UBBB1-008 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Bidirectional Channels
Mounting Type
Operating Temperature
Power Line Protection
Storage Temperature
Tape & Reel
Type
Voltage
View Similar Products (0)

LXES1UBBB1-008 Description

Short technical summary and product information.

The Murata LXES1UBBB1-008 is a bi-directional TVS Diode designed for ESD protection. It operates at a nominal voltage of 6V and features a breakdown voltage of 7V at 1mA.



This device boasts an ultra-low capacitance of 0.5pF typical, making it suitable for high-speed data lines. It meets IEC61000-4-2 standards for ESD protection, withstanding ±15kV in air and ±8kV on contact.



The LXES1UBBB1-008 is supplied in a compact 2-UDFN surface mount package. It operates within a temperature range of -40°C to 85°C and is delivered in reels of 3,000 pieces.

LXES1UBBB1-008 Quick Information

Product Type: TVS Diode
Canonical Name: LXES1UBBB1-008 TVS Diode
Subcategory: TVS Diodes

LXES1UBBB1-008 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LXES1UBBB1-008 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

LXES1UBBB1-008 Features

  • Bi-directional ESD protection device
  • 6V reverse standoff voltage
  • Ultra-low capacitance of 0.5pF
  • IEC61000-4-2 ESD rating
  • Surface mount 2-UDFN package

LXES1UBBB1-008 Applications

  • Protects circuits from voltage transients
  • Used in automotive and consumer electronics
  • Suitable for high-speed data line protection
  • Ideal for compact PCB designs

LXES1UBBB1-008 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the standoff voltage for the LXES1UBBB1-008 TVS Diode?

The standoff voltage for the LXES1UBBB1-008 is 6V.

What is the breakdown voltage of the LXES1UBBB1-008 TVS Diode?

The breakdown voltage is a minimum of 7V at 1mA.

What is the capacitance of the LXES1UBBB1-008 TVS Diode?

The capacitance is typically 0.5pF at VR=0V and f=1MHz.

How does the LXES1UBBB1-008 TVS Diode handle ESD events?

It can withstand ±15kV via air discharge and ±8kV via contact discharge according to IEC61000-4-2.

What is the operating temperature range for the LXES1UBBB1-008 TVS Diode?

The operating temperature range is -40°C to 85°C.

What package type is the LXES1UBBB1-008 TVS Diode supplied in?

The LXES1UBBB1-008 is supplied in a 2-UDFN surface mount package.
