| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
169 pcs
|
169 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

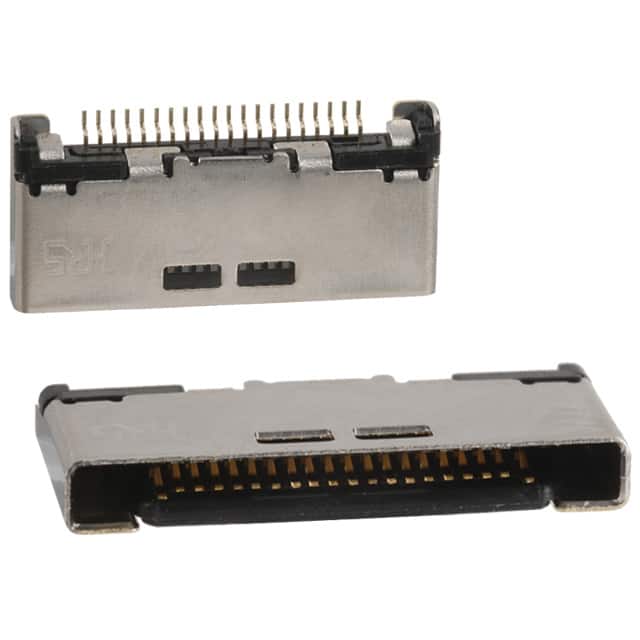

The Hirose Electric LX60-20S is a 20-position receptacle connector designed for board-to-cable/wire applications. It features a 0.50mm pitch and a single row of center strip contacts, terminated via surface mount right angle solder tails. The connector includes a friction lock fastening type and a board guide feature for secure mating and alignment.
Electrical ratings include a current rating of 0.5A per contact and a voltage rating of 50VAC. The operating temperature range is -40°C to 70°C. The insulator is black with a UL94 V-0 flammability rating, and contacts are finished with 12.0µin (0.30µm) gold.
This connector is suitable for compact electronic devices requiring a low-profile, high-density interconnect solution. The right-angle mounting orientation helps save board space in tight layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.79 | $2.79 |
| 10+ | $2.37 | $2.37 |
| 100+ | $2.02 | $2.02 |
| 500+ | $1.83 | $1.83 |
| 2,000+ | $1.83 | $1.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.50mm.
It has 20 positions, all loaded.
The current rating is 0.5A per contact.
The voltage rating is 50VAC.
Surface mount, right angle.
-40°C to 70°C.
Gold, with a thickness of 12.0µin (0.30µm).
