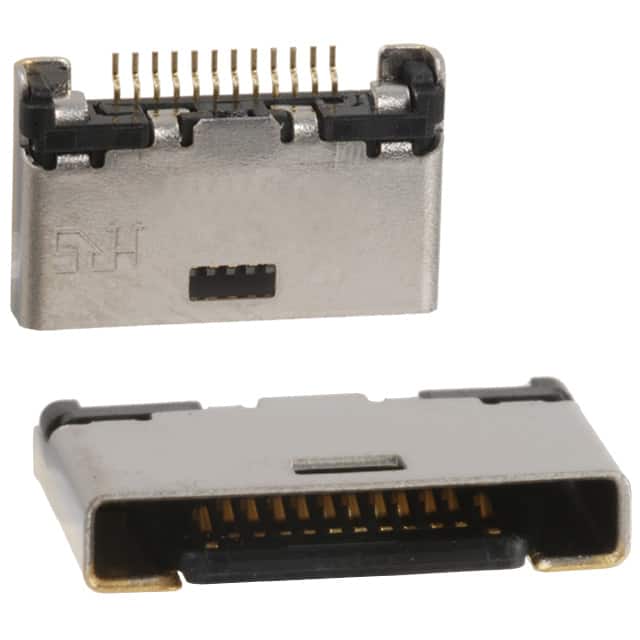

The LX60-12S is a 12-position receptacle from Hirose Electric's LX series, designed for board-to-cable/wire connections in compact portable devices. It features a 0.5mm pitch, gold-plated center strip contacts, and a surface mount right angle termination with solder. The connector includes a friction lock for secure mating and a board guide for alignment.
Key electrical specifications include a voltage rating of 50V AC and a current rating of 0.5A per contact (up to 1A via two random contacts). Contact resistance is 70 mΩ maximum, insulation resistance is 1000 MΩ minimum (dry), and withstanding voltage is 250V AC for 1 minute. The operating temperature range is -40°C to 70°C.
Mechanically, the receptacle has a low profile with an insulation height of 2.0mm when mounted. It offers high contact reliability with bellows contacts and a mating durability of 5000 cycles. Mating force is 10N maximum, unmating force is 4N minimum. The connector withstands shock and vibration with contact resistance change limited to 20 mΩ. It also features sequential mating with longer end contacts for circuit protection.
Packaging is surface mount, right angle, with a pitch of 0.50mm. The insulation material is black with a flammability rating of UL94 V-0. The LX60-12S is RoHS compliant and suitable for applications such as digital still cameras, tablet devices, thin electronic equipment, and mobile phones.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.48 | $2.48 |
| 10+ | $2.11 | $2.11 |
| 100+ | $1.79 | $1.79 |
| 500+ | $1.60 | $1.60 |
| 1,000+ | $1.56 | $1.56 |
| 2,000+ | $1.71 | $1.71 |
| 4,000+ | $1.63 | $1.63 |
| 6,000+ | $1.59 | $1.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LX60-12S has 12 positions.
The pitch is 0.5 mm.
The current rating is 0.5 A per contact, with up to 1 A possible via two random contacts.
The voltage rating is 50 V AC.
The mounting type is surface mount, right angle.
The operating temperature range is -40°C to 70°C.
The contact finish is gold with a thickness of 0.30 µm (12.0 µin).
